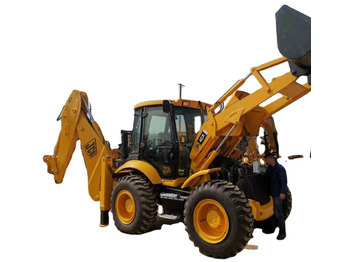

Jaunā Ekskavators-iekrāvējs NEW MAXUS 4CX Backhoe Loader Warranty up to 10 YEARS НОВА Копарко-Навантажувач MAXUS 4CX Гарантія до 10 РОКІВ NOWA Koparko Ładowarka MAXUS 4CX Gwarancja do 10 LAT

Machines, Equipment, and Vehicles Qualify for All Assistance Programs

MAXUS TESTING

You can test any of our tractors or machines within 14 days from the delivery date. This period allows you to check the equipment in your working conditions.

MAXUS SERVICE

100+ cooperating stationary service centers and workshops

100+ cooperating mobile services

100+ cooperating tow trucks

Become Our Client - MAXUS Brand Ambassador

Wondering how it works? First, you get a machine at half price – you pay the rest by promoting the MAXUS brand.

Together we can do more!

Join us today – we’re waiting for you!

Short on Cash? No Problem!

We offer bank and non-bank financing for the machines, equipment, and vehicles we sell.

We can offer:

Operating lease – bank and non-bank

Financial lease

Leasing loan

Investment loan or loan for any purpose, including EU-supported loans

Factoring loan

Non-bank loan

Leasing available for businesses and farmers from the first day of operation.

Additionally:

Statement-based credit

No BIK/KRD database check

Own contribution required

Machine Basic Version Promotion

Only a few units available – December 2023

Overall Dimensions

Length (with bucket on the ground): 6450±80mm

Total width (with stabilizer): 2650 ± 20 mm

Loader bucket width: 2620 mm

Height (to the top of the cabin): 3120 ± 10 mm

Height (to the top of the digging pillar): 3940 ± 20 mm

Wheelbase: 2335 ± 10 mm

Rear wheel track: 2139 ± 10 mm

Main Loader Technical Specifications

Rated load capacity: 2500 KG

Operating weight: 9120 kg

Rated bucket capacity: 1.2 m³

Maximum dumping clearance: 3050±50 mm

Dumping reach: 870±20 mm

Bucket reach: 5750±50mm

Main Digging Technical Specifications

Rated digging bucket capacity: 0.3 m³

Maximum digging depth: 3820±20 mm

Maximum digging radius: 5345±20mm

Maximum dumping height: 3740±20mm

Maximum digging force: kgf

Maximum digging height: 5470 ±20mm

Lifting force at maximum digging radius: 1220kg

Maximum digging depth (telescopic arm): 4970±20 mm

Maximum loading height (telescopic arm): 4983±20mm

Maximum digging height (telescopic arm): 6680±20mm

Diesel Engine

Model: YC4A105Z-T20

Manufacturer: Yuchai

Rated power: 75 kW

Capacity: 4.8 L

Rated speed: 2200 rpm

Max torque: 400 NM

Transmission System

Torque converter model: 315 (pressure oil circulation cooling)

Gearbox model: 15 (mechanical synchronization gear shifting)

Axle and tire model: WZL100

Gear shifting: 4 F, 4 R

Speed (forward/reverse) km/h:

F1: 5 km/h; F2: 10 km/h; F3: 18 km/h; F4: 32 km/h

R1: 5 km/h; R2: 10 km/h; R3: 18 km/h; R4: 32 km/h

Tire size: 16.9-28

Hydraulic System

Working pump: 63ml/r

Working pump pressure: 20 MPa

Steering gear type: BZZ-500

Excavation Equipment (Crushing Hammer)

Drill rod diameter: 68-70 mm

Operating pressure: 11-14 MPa

Impact frequency: 500-900

Flow range: 25-45 l/min

Kinetic energy: 49 KN

Oil Capacity

Hydraulic oil tank: 125 L

Diesel fuel tank: 125 L

If you need a different tractor with any available power or another machine, no problem – just ask, and you will receive an immediate response.

Every purchase from us is covered by a warranty and a properly executed contract for the amount of:

2,000,000 PLN (two million)

Additionally, 1,000,000 PLN (one million) secures each of our subcontractors in the supply chain.

1,000,000 PLN (one million) product liability insurance

We are a participant in the RZETELNA Firma program.

Check our credibility!
