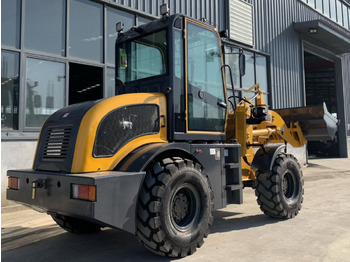

Jaunā Riteņu iekrāvējs Qingdao Promising 1.6T Capacity Hydraulic Wheel Loader ZL16F with CE

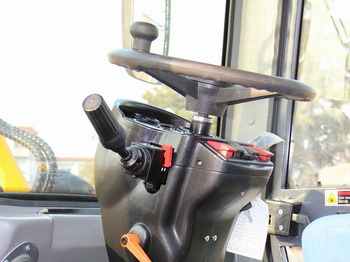

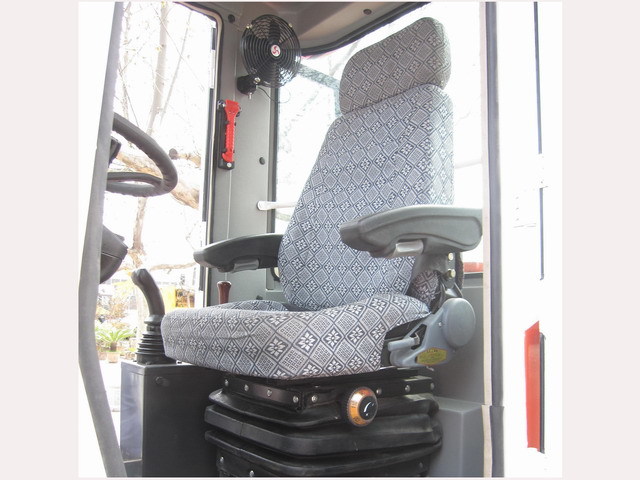

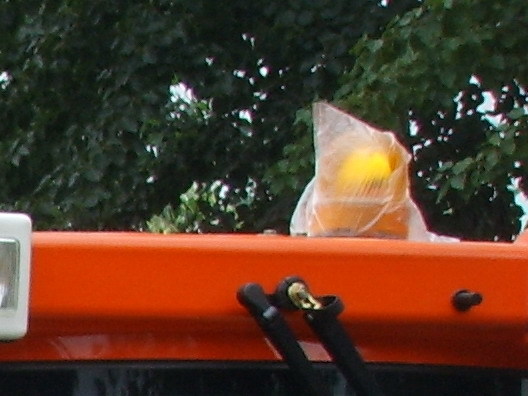

CE marked 1.6 ton front end wheel loader with enclosed cabin, EURO III engine, electronically controlled gearshift lever, hub reduction drive axle, hydraulic quick hitch, top beacon; and optional hydraulic joystick control, air conditioner, reversing camera, and floating function etc.

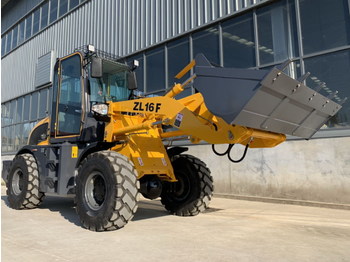

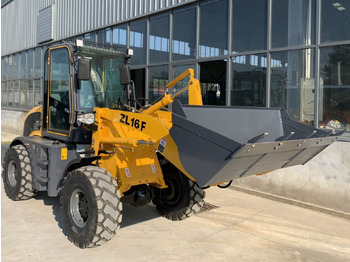

Hydraulic Wheel Loader ZL16F

Technical Specifications:

1. Rated Load: 1600kg

2. Operating Weight: 4175kg

3. Rated Bucket Capacity: 0.8CBM

4. Bucket Width: 1800mm

5. Max. Breakout Force: 36.8KN

6. Max. Dumping Height: 2700mm

7. Max. Dumping Reach: 1000mm

8. Raising Time: < 6.0s

9. Min. Ground Clearance: 290mm

10. Overall Dimensions (L x W x H): 5100x1800x2770mm

11. Min. Turning Radius: 4500mm

12. Engine Model: XINCHAI A498BT1 (EURO III)

13. Engine Type: Four-cylinder, Inline, Water-cooled Evaporative, Four-stroke Diesel Engine

14. Rated Engine Power: 36.8kW

15. Rated Engine Speed: 2400rpm

16. Min. Fuel Consumption Rate: 230g/kW.h

17. Transmission Mode: ZL265 Integrated Hydraulic Torque Converter

18. Gear Shift: 1 Forward, 1 Reverse, 1 High Speed, 1 Low Speed

19. Max. Speed: 25km/h

20. Mode of Axle: ZL16 Hub Reduction Drive Axle

21. Wheel Tread: 1500mm

22. Wheel Base: 2100mm

23. Drive Mode: 4-wheel Drive

24. Hydraulic System Working Pressure: 16Mpa

25. Hydraulic System Working Pump Type: Gear Pump

26. Service Brake: Foot Pedal Vacuum Booster, Air Over Hydraulic Caliper Disc Brake on 4 Wheels

27. Parking Brake: Hand Lever Flexible Shaft Controlled Disc Brake

28. Tyre Type Specification: 20.5/70-16 Tire

29. Front Tyre Pressure: 0.40Mpa

30. Rear Tyre Pressure: 0.35Mpa

Optional EURO5 Engine: 45kw YUNNEI DEF20CDF4 Engine

Optional Tires: 31x15.5-15PR

Optional Parts and Functions:

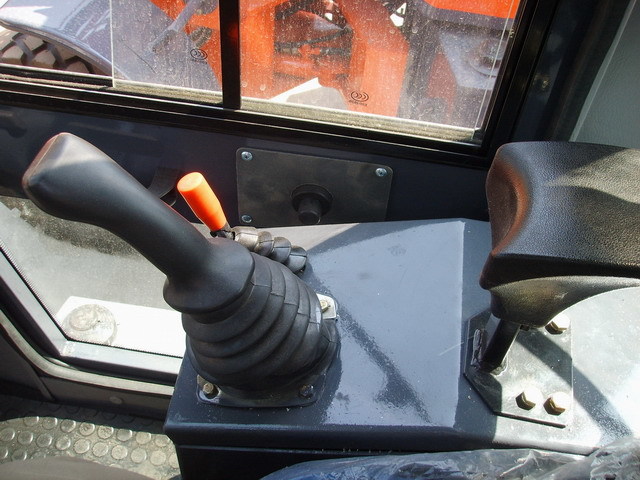

Canopy, Open Cabin, FOPS/ROPS, Tilting Cabin, Hydraulic Joystick, Air Conditioner, Colour Coded Electronic Gear Shift Button on Joystick, Gear Shift Lever with Electronic Control, Reversing Camera, Quick Hitch, Extra Hydraulic Lines, LED Lights, and Float Function, etc.

Note:

1. The technical specifications are for standard models only.

2. Other optional accessories and requirements are available upon request.

3. All photos are for reference only. Machines shown may include optional parts.

4. All specifications and design characteristics are subject to change without prior notice.

5. For all available loader attachments, please refer to our Loader Attachments Catalogue.

6. Equipped with hydraulic quick coupler, your wheel loader can be easily and conveniently switched from one attachment to another to save your time and labor. Equipped with skid steer (Bobcat) quick coupler or Euro Standard quick coupler, you can use all your existing attachments with our wheel loader.
