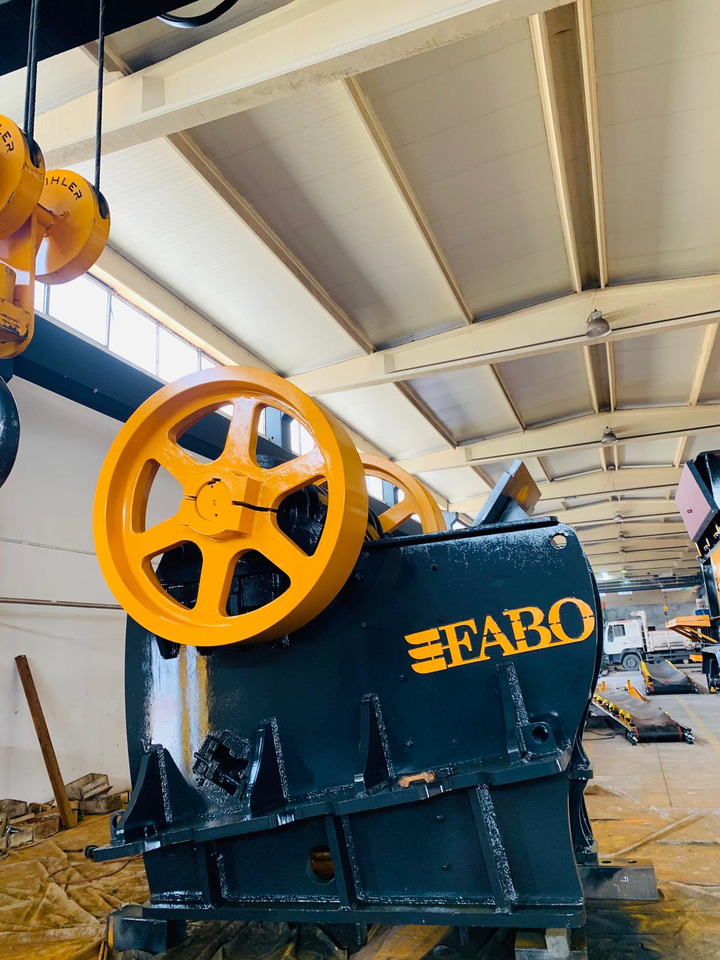

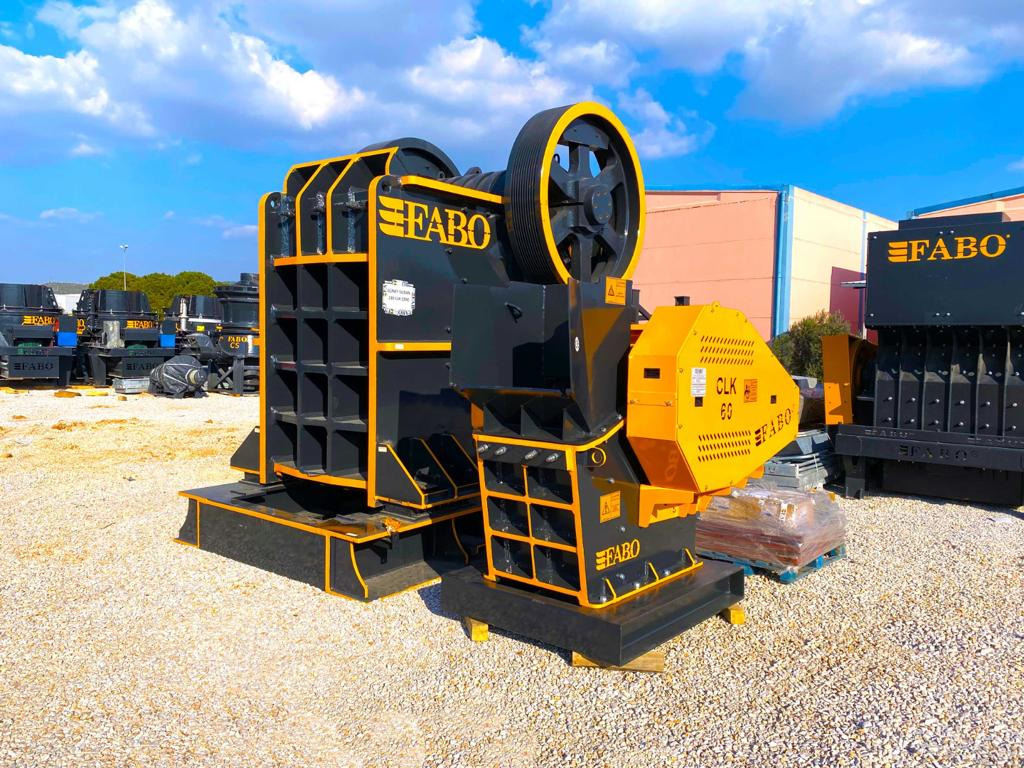

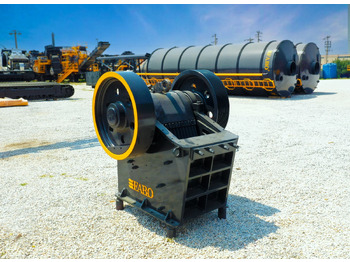

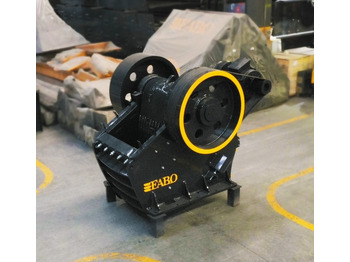

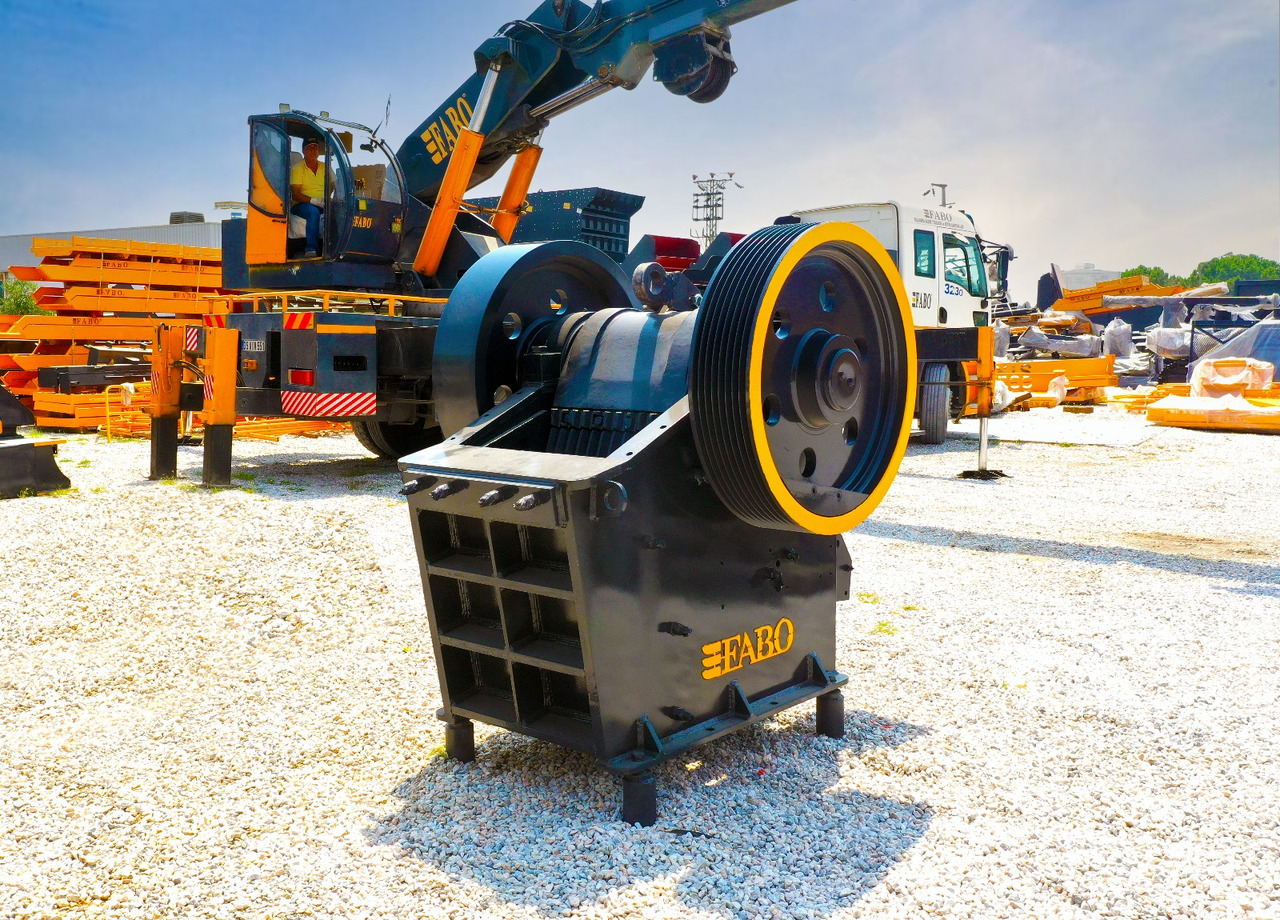

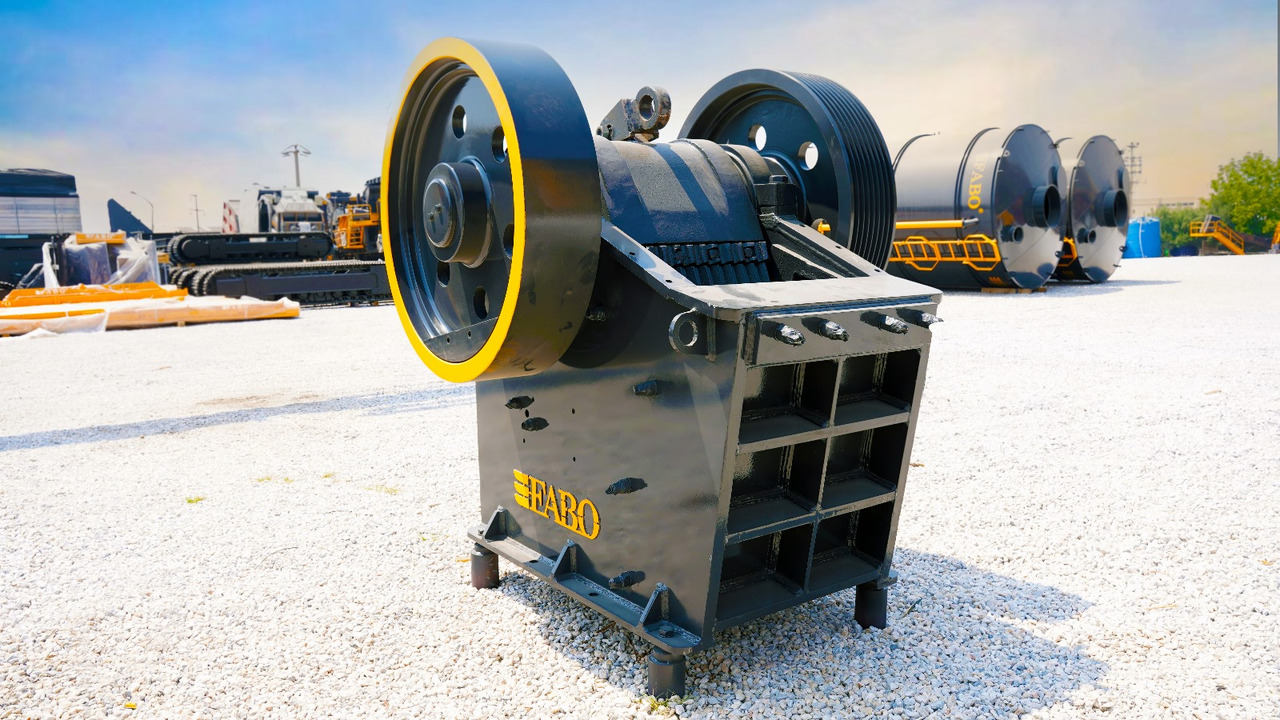

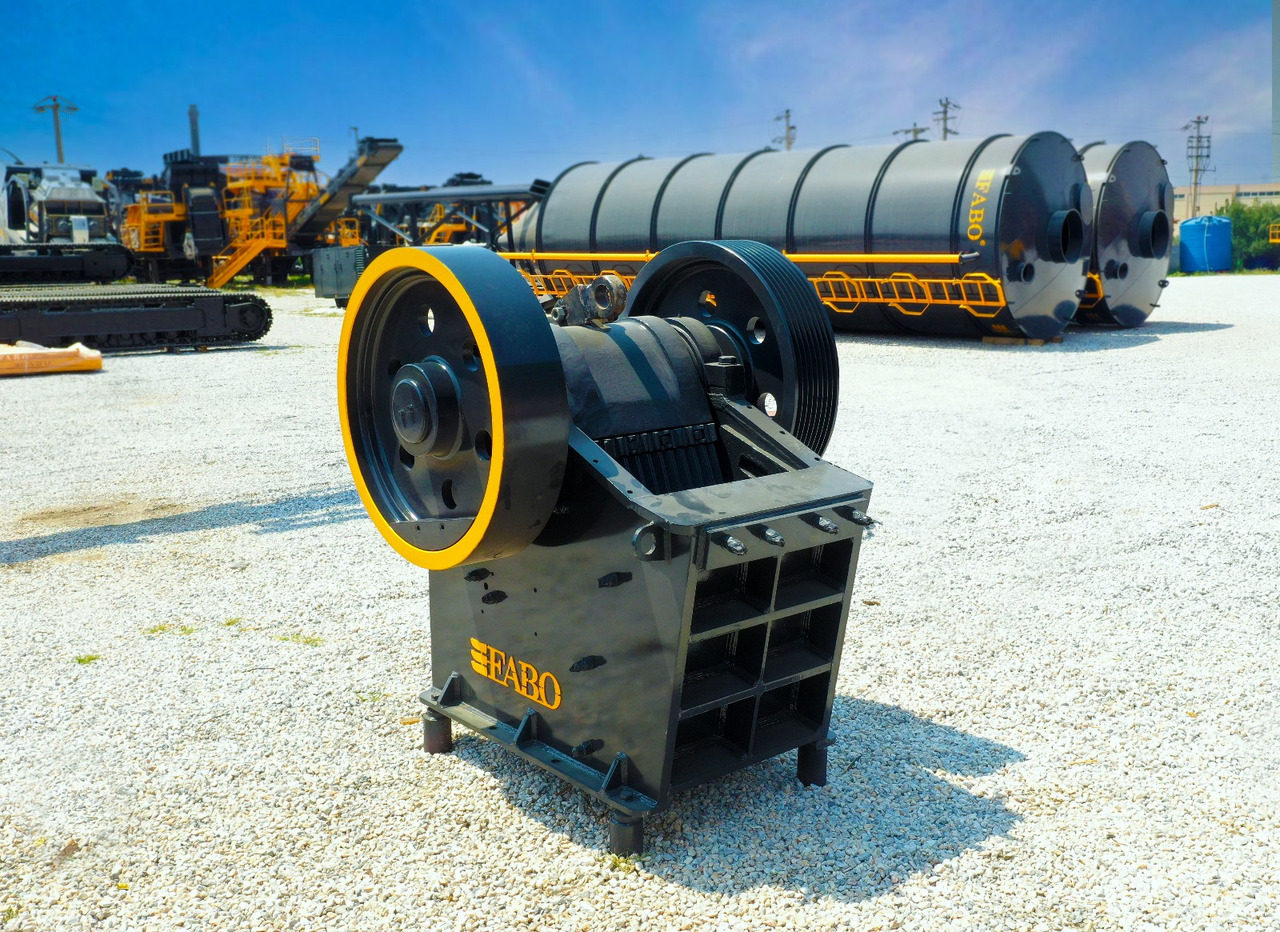

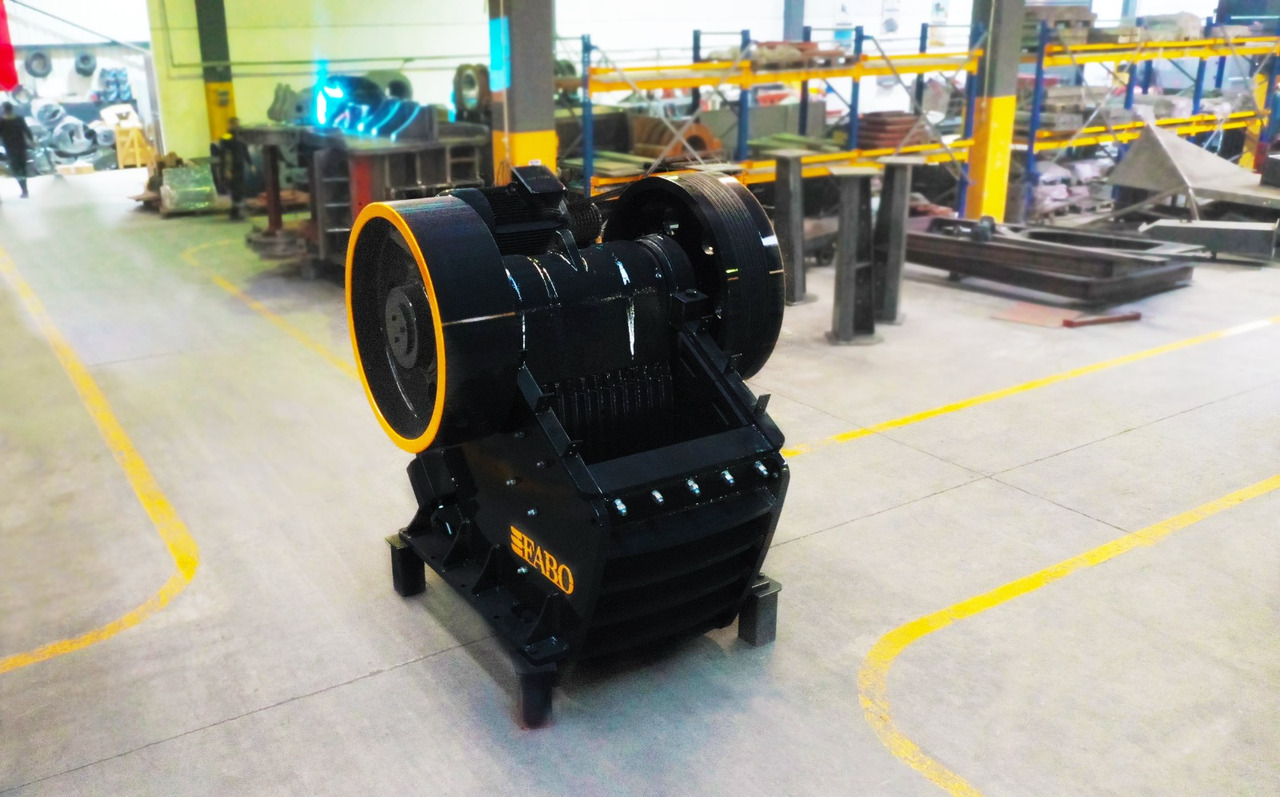

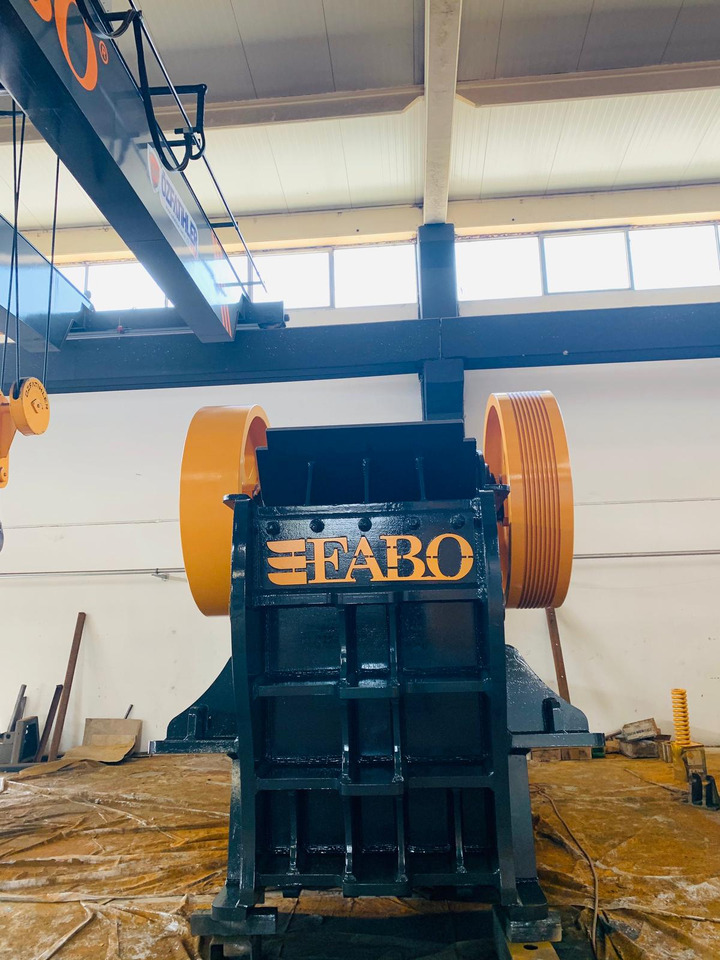

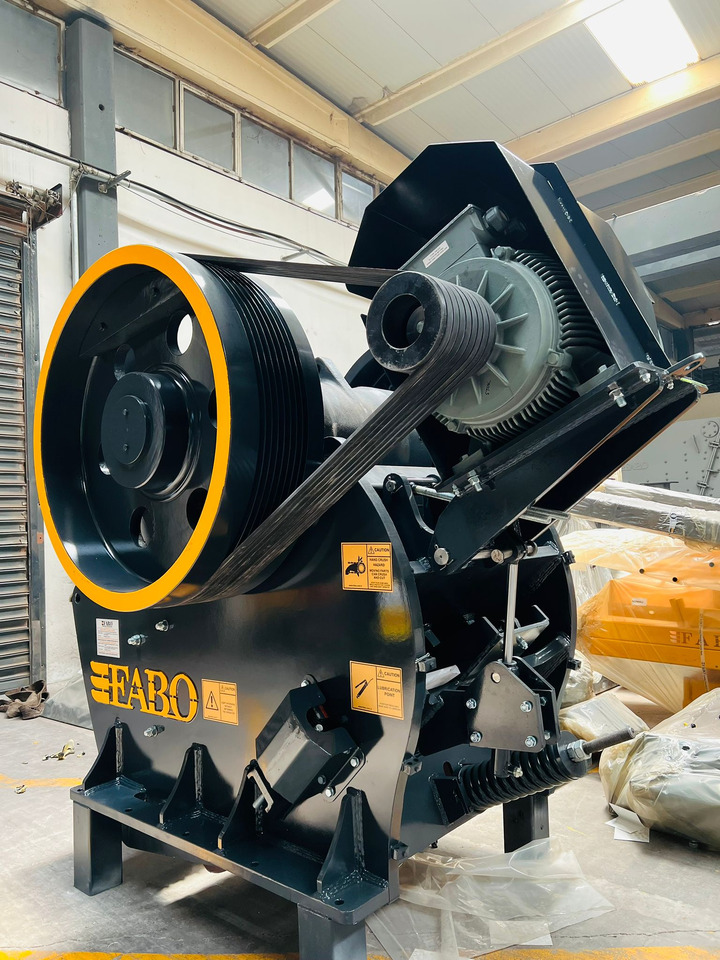

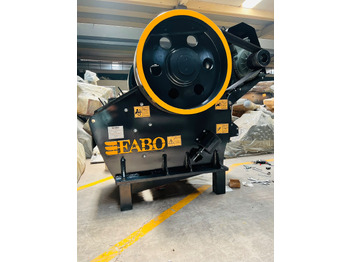

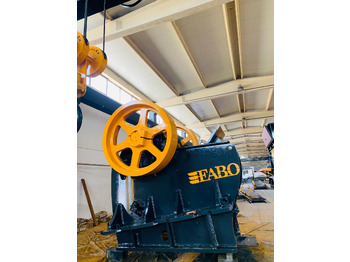

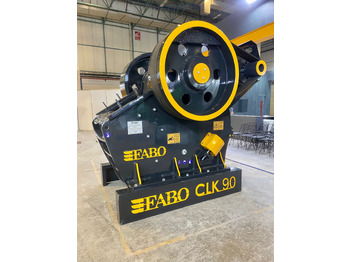

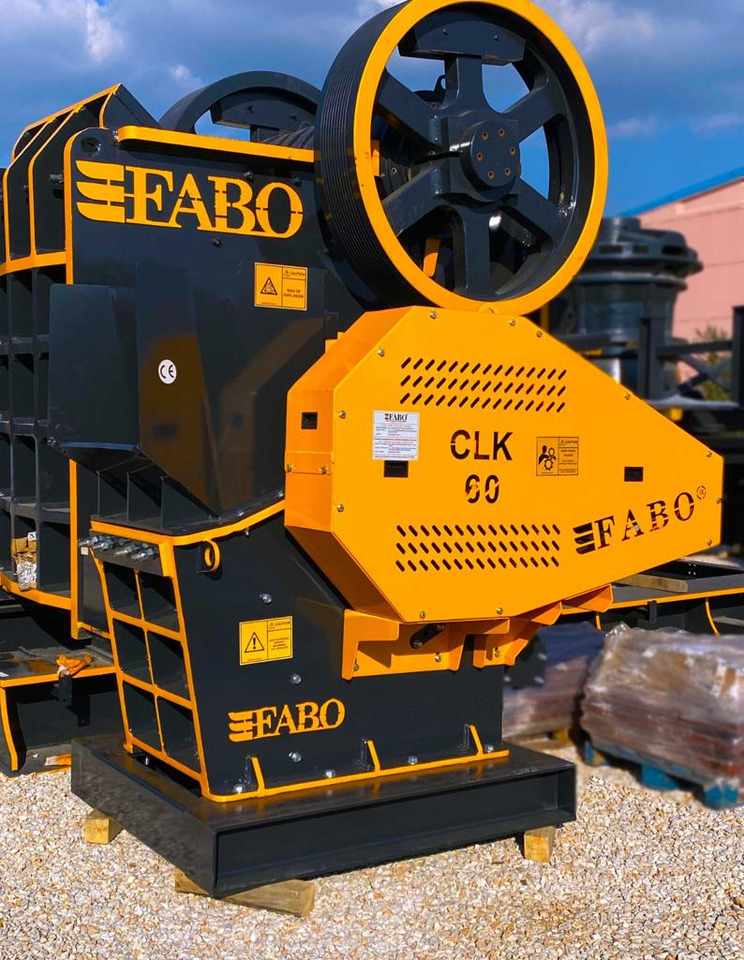

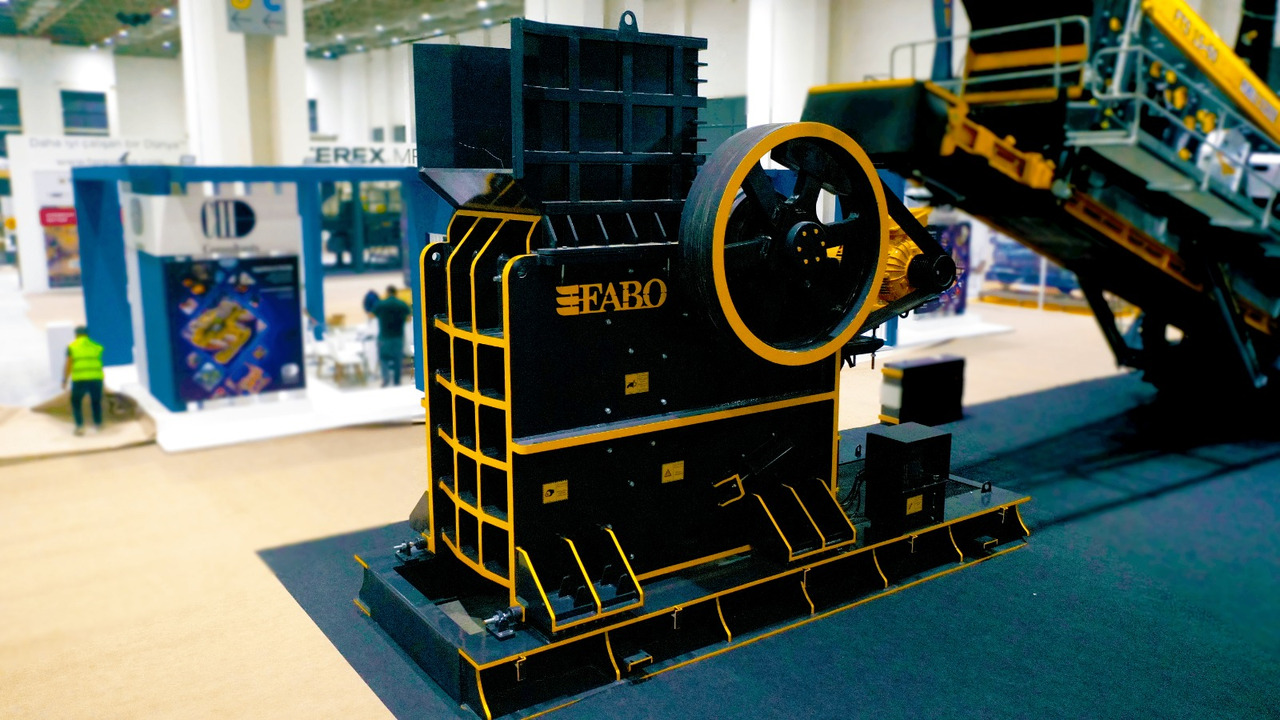

Jaunā Žokļu drupinātājs FABO JAW CRUSHER

• All of our products are made with care and covered for 1 year warranty!
• Installation and Operator Training FREE

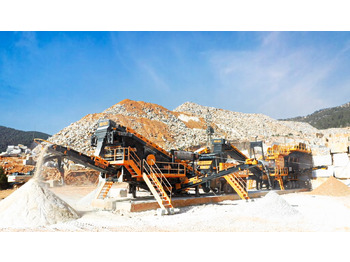

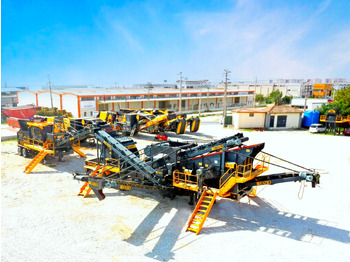

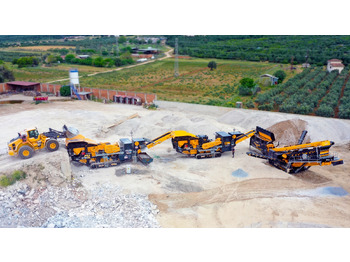

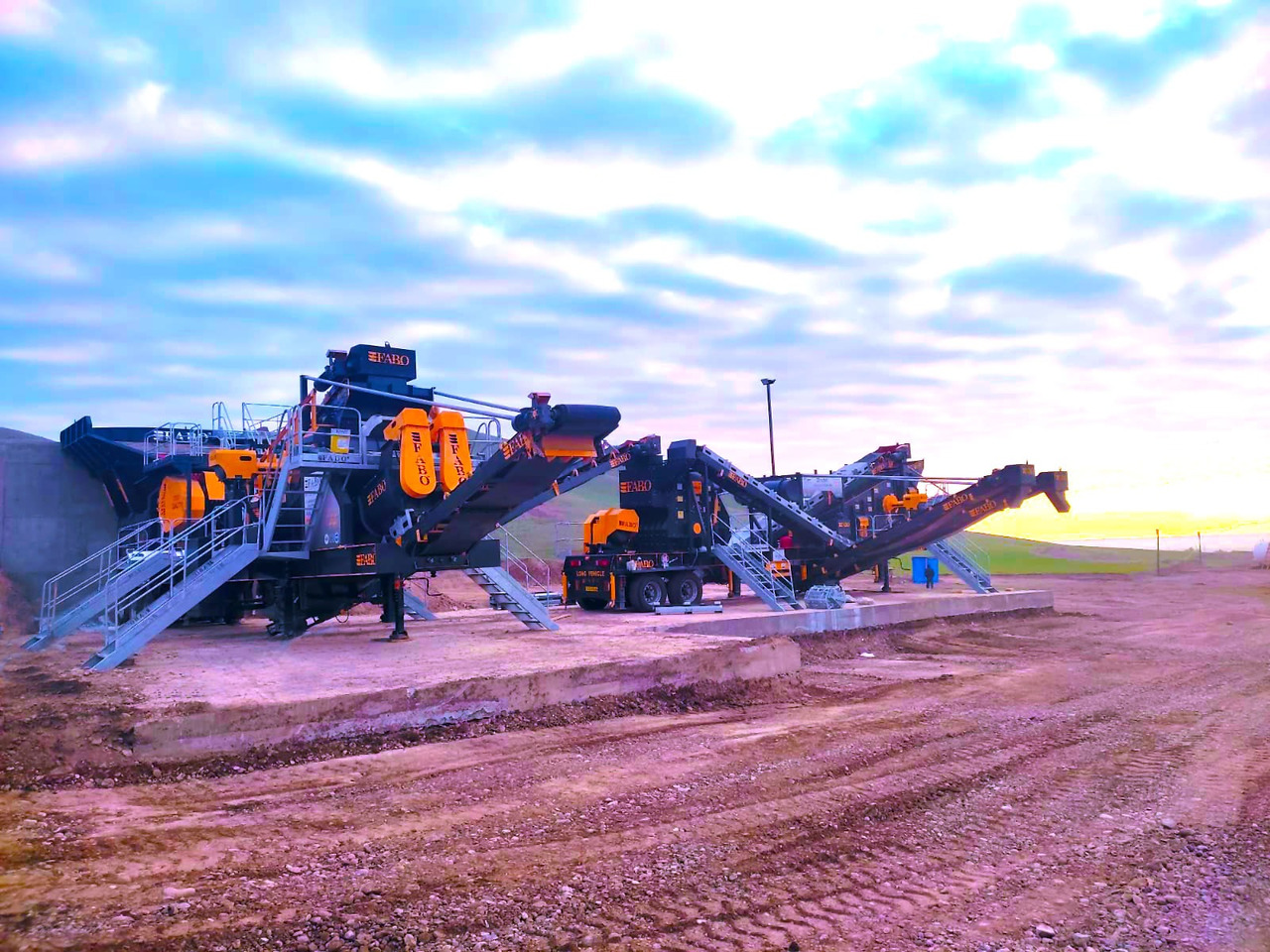

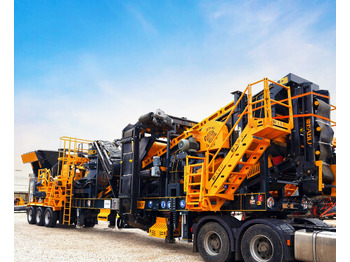

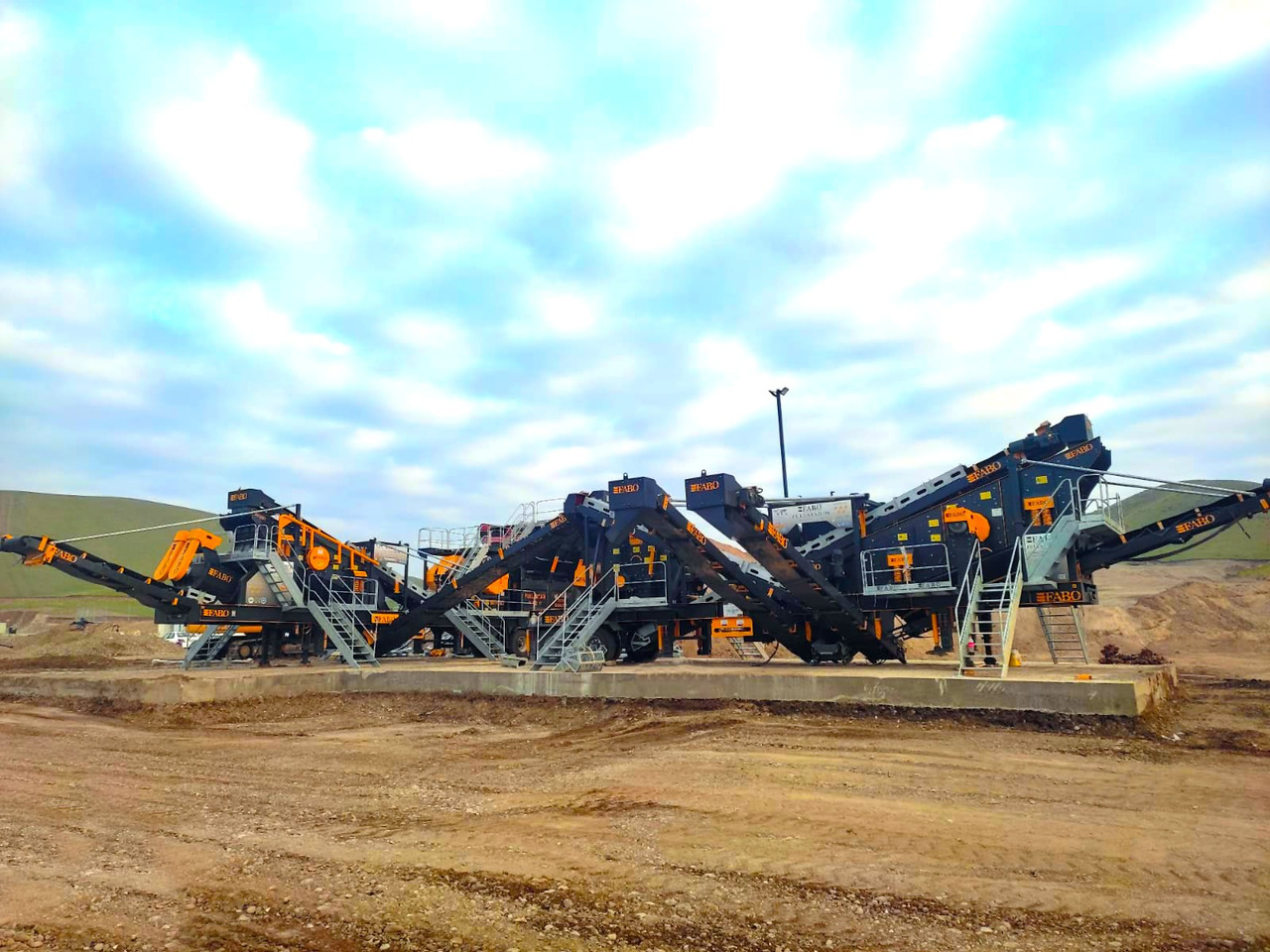

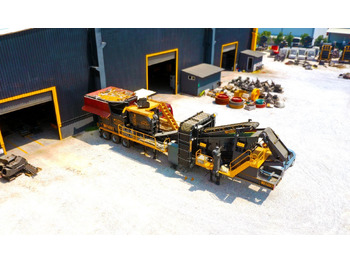

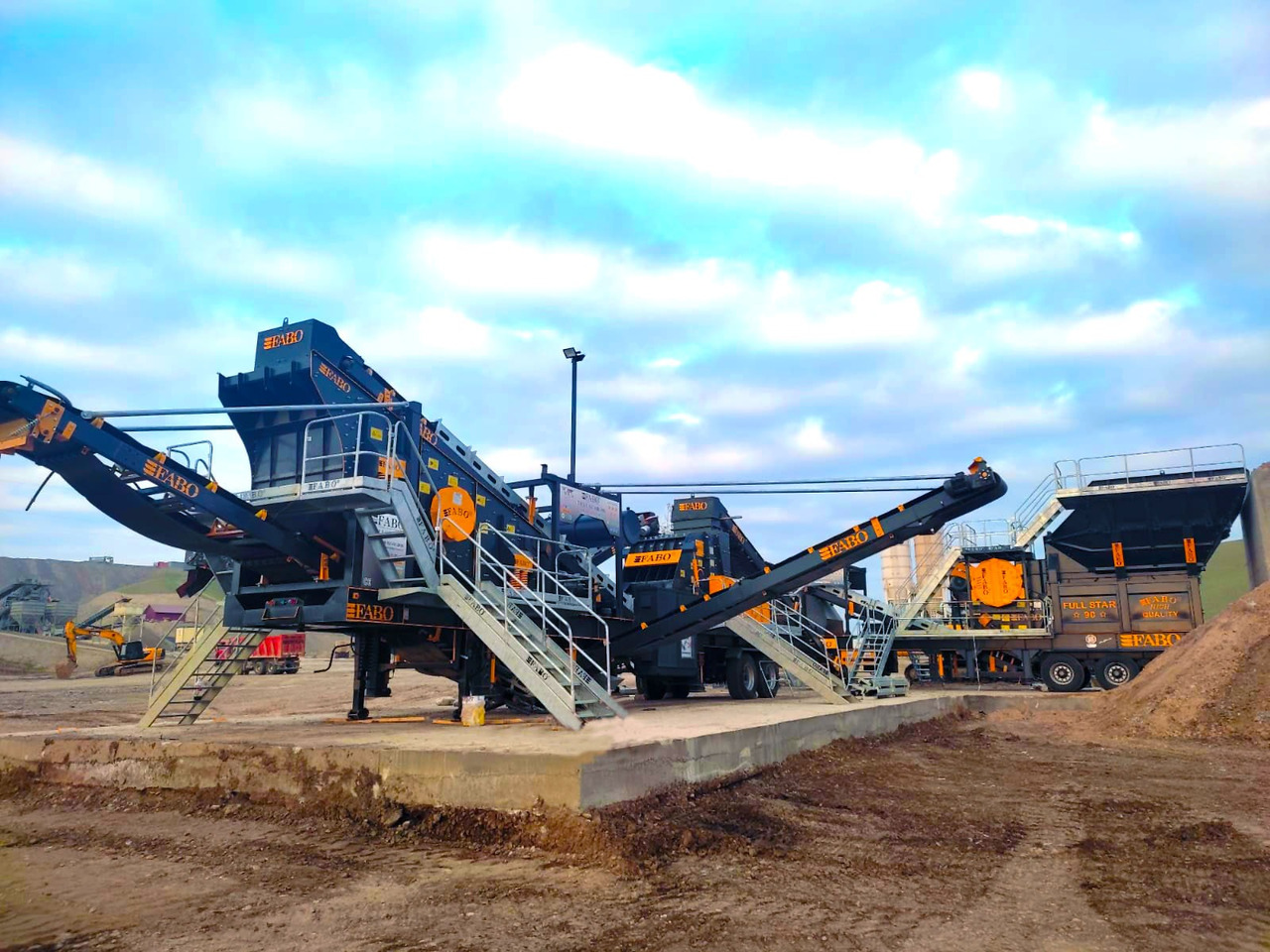

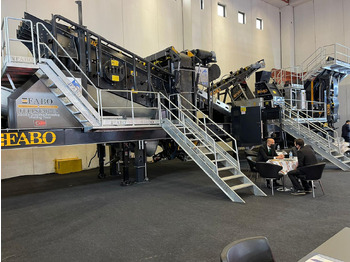

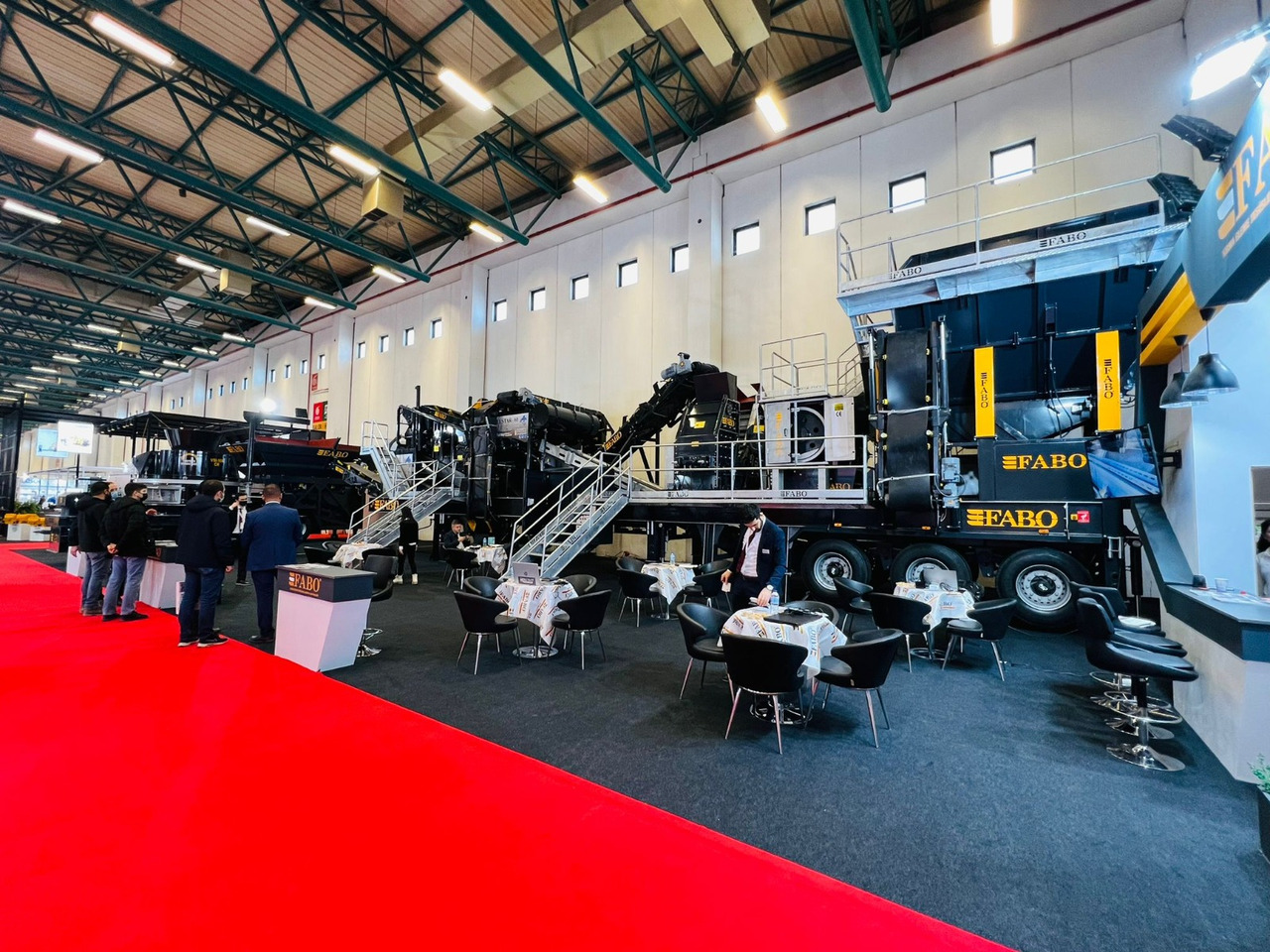

FABO MCK-110 is the biggest model of MCK series, those are a mobile type & closed circuit crushing and screening plants that is used for processing of hard materials such as basalt, granite, gabbro, dolomite and other types of hard stones. MCK-110 includes two stages of crushing process which is made by primary jaw crusher and Secondary impact crusher.

TECHNICAL SPECIFICATIONS:

- Bunker: 35 m3

- Plant Dimensions (1st chassis): 13000x4700x4400 mm

- Second chassis: 17500x47000x4600 mm

- Production Capacity: 180-300 Tons Per Hour

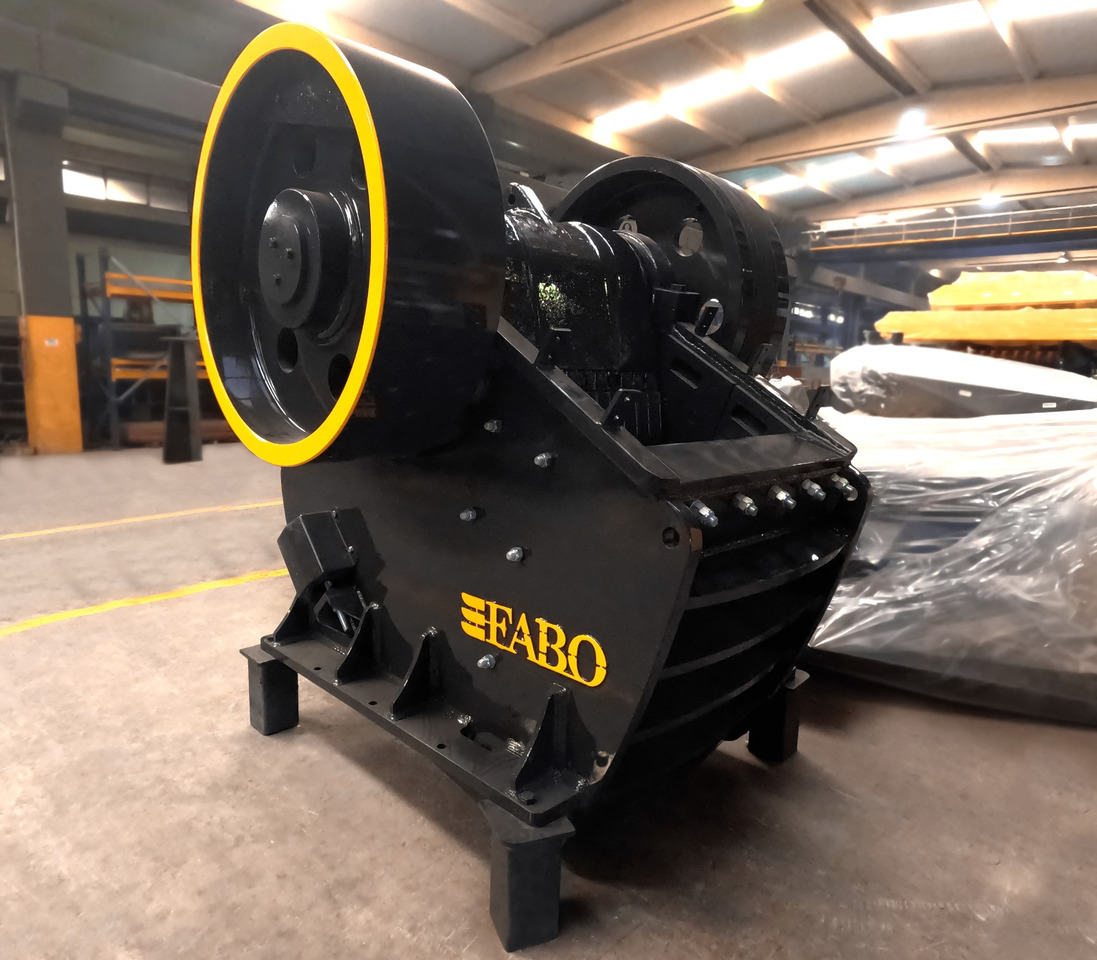

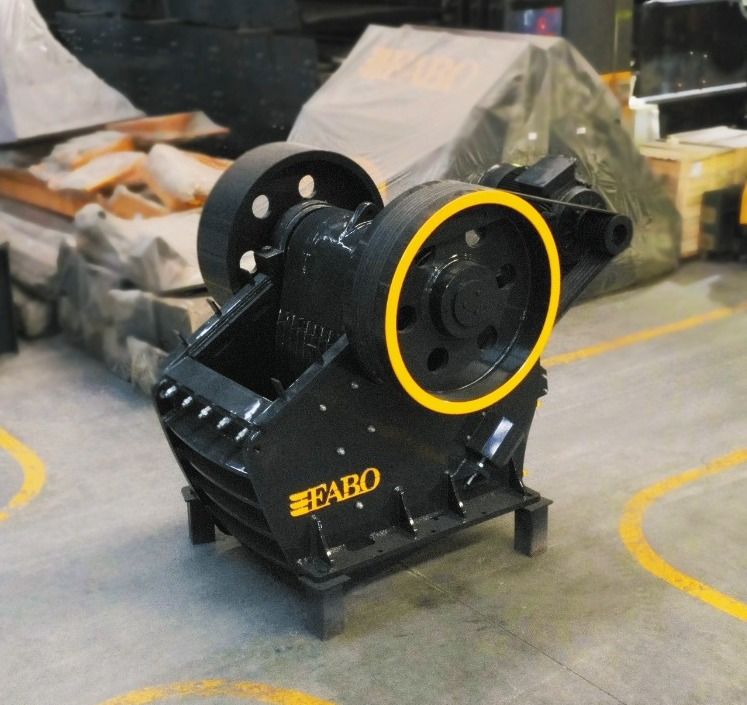

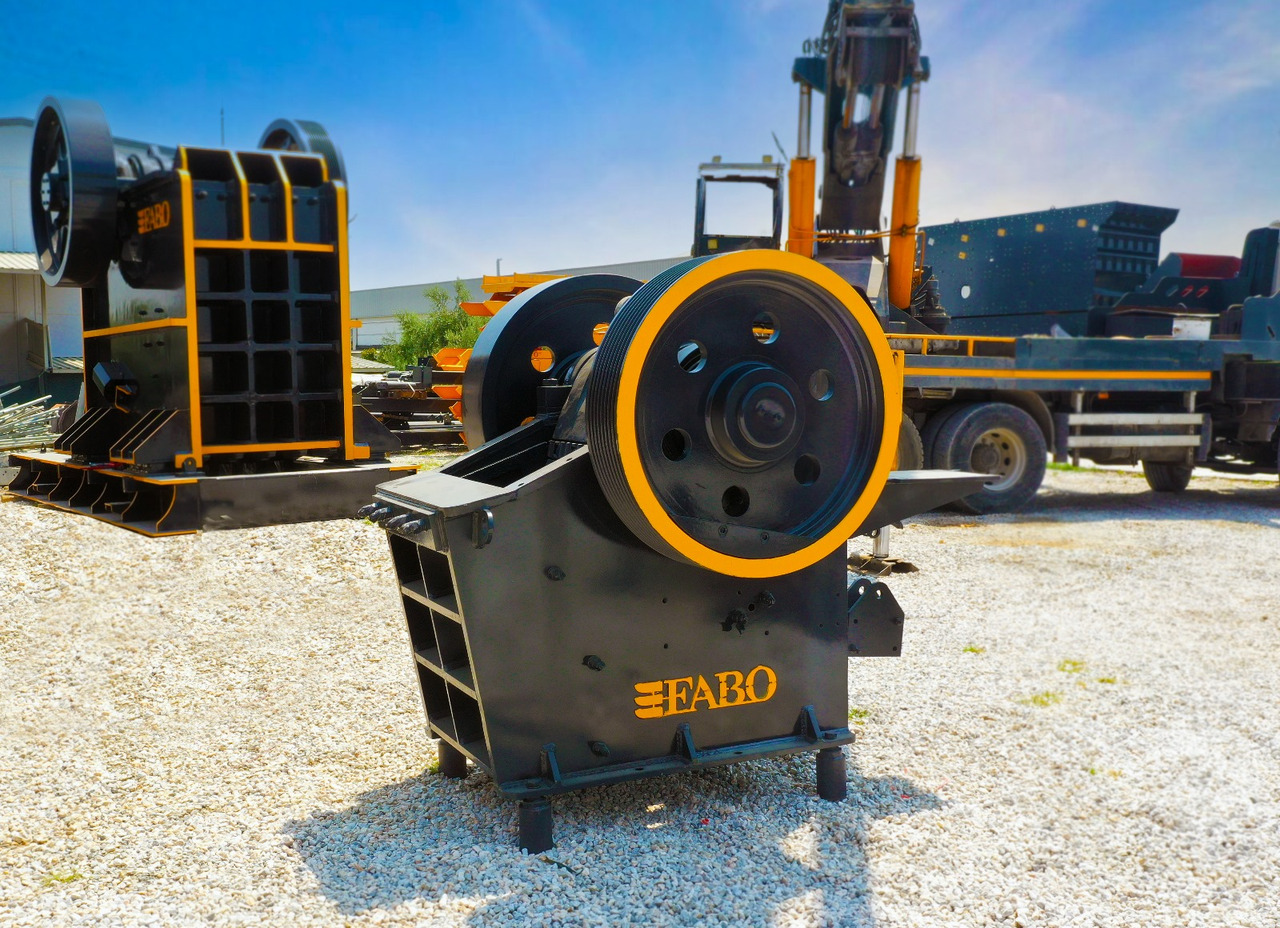

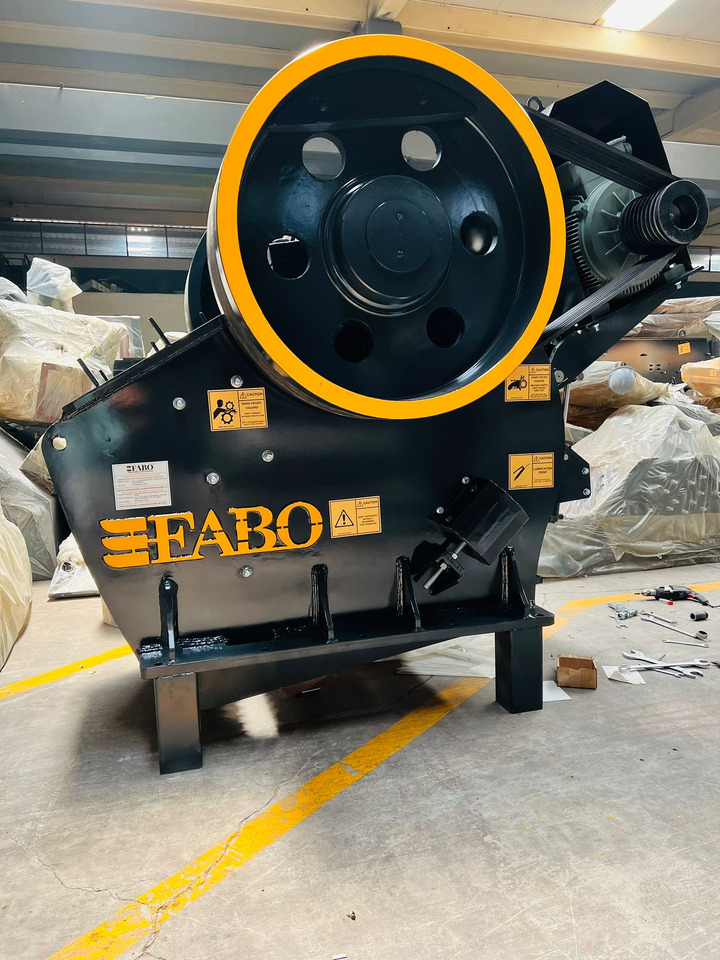

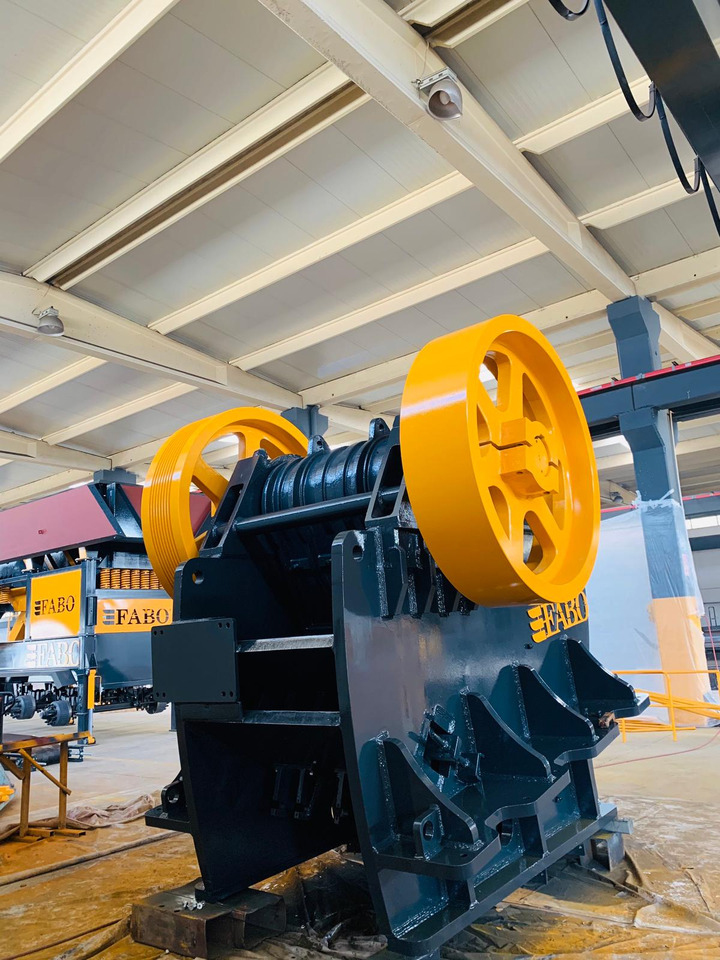

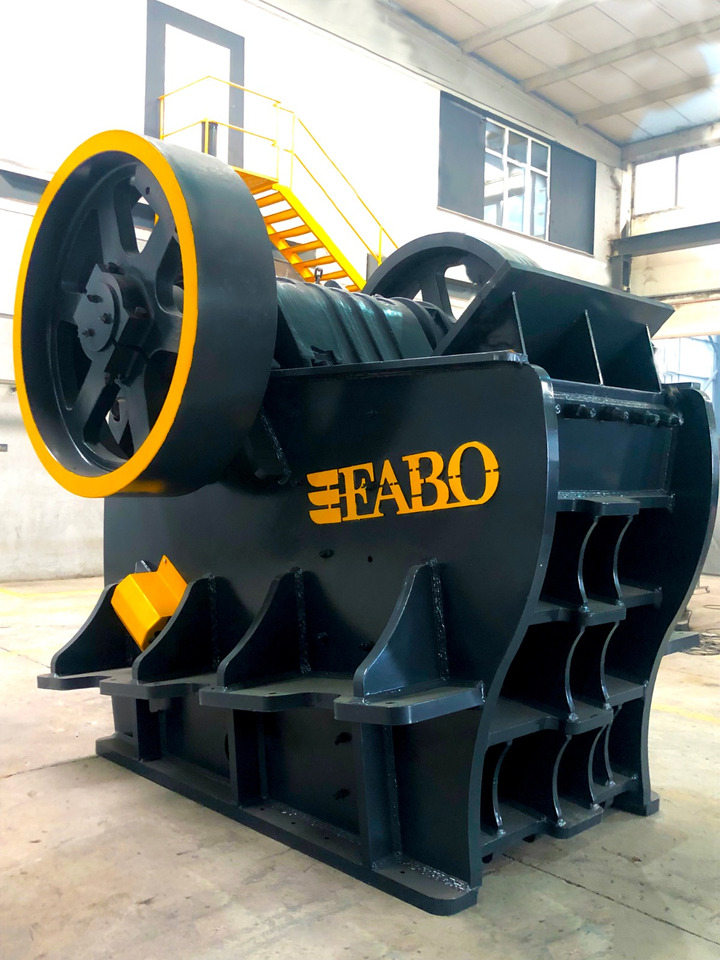

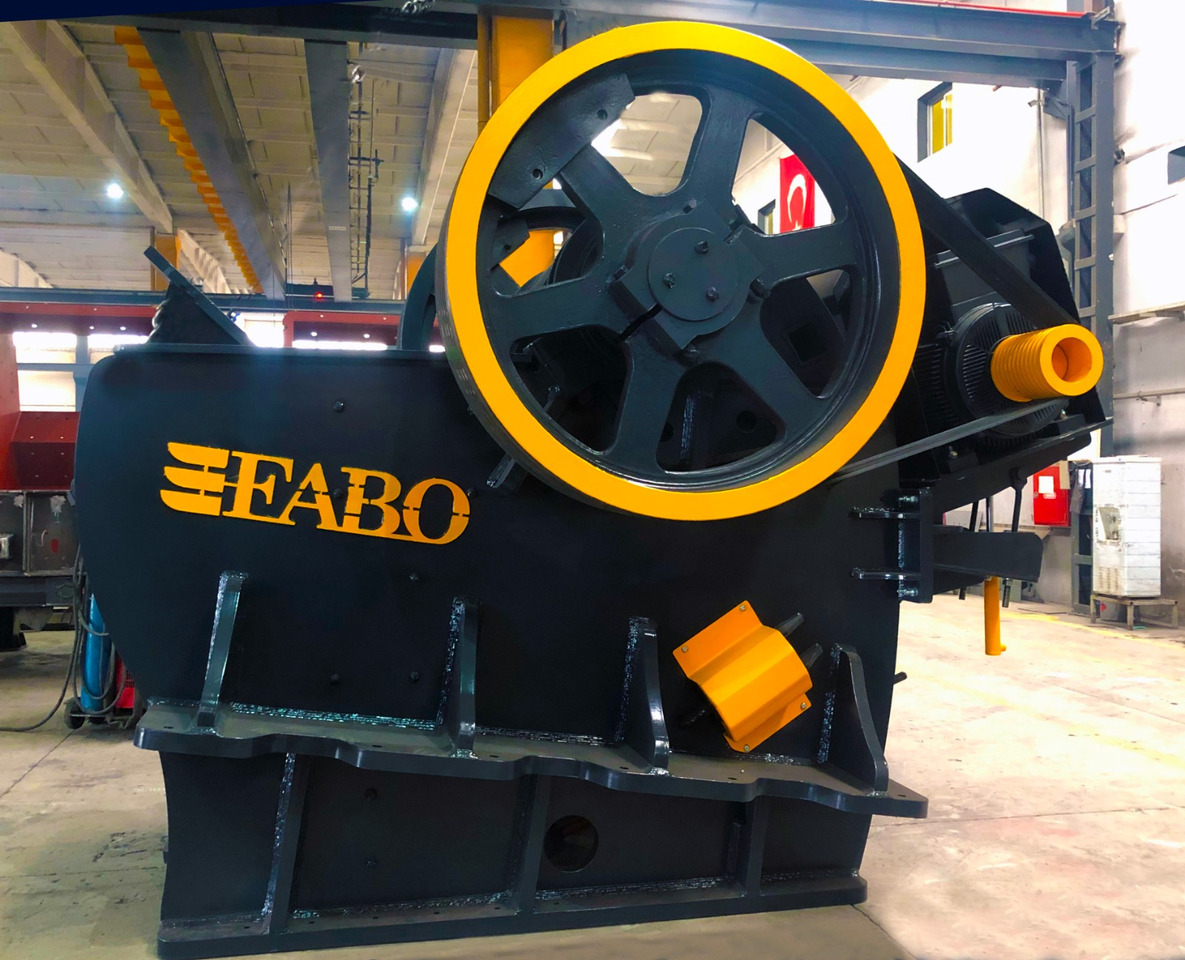

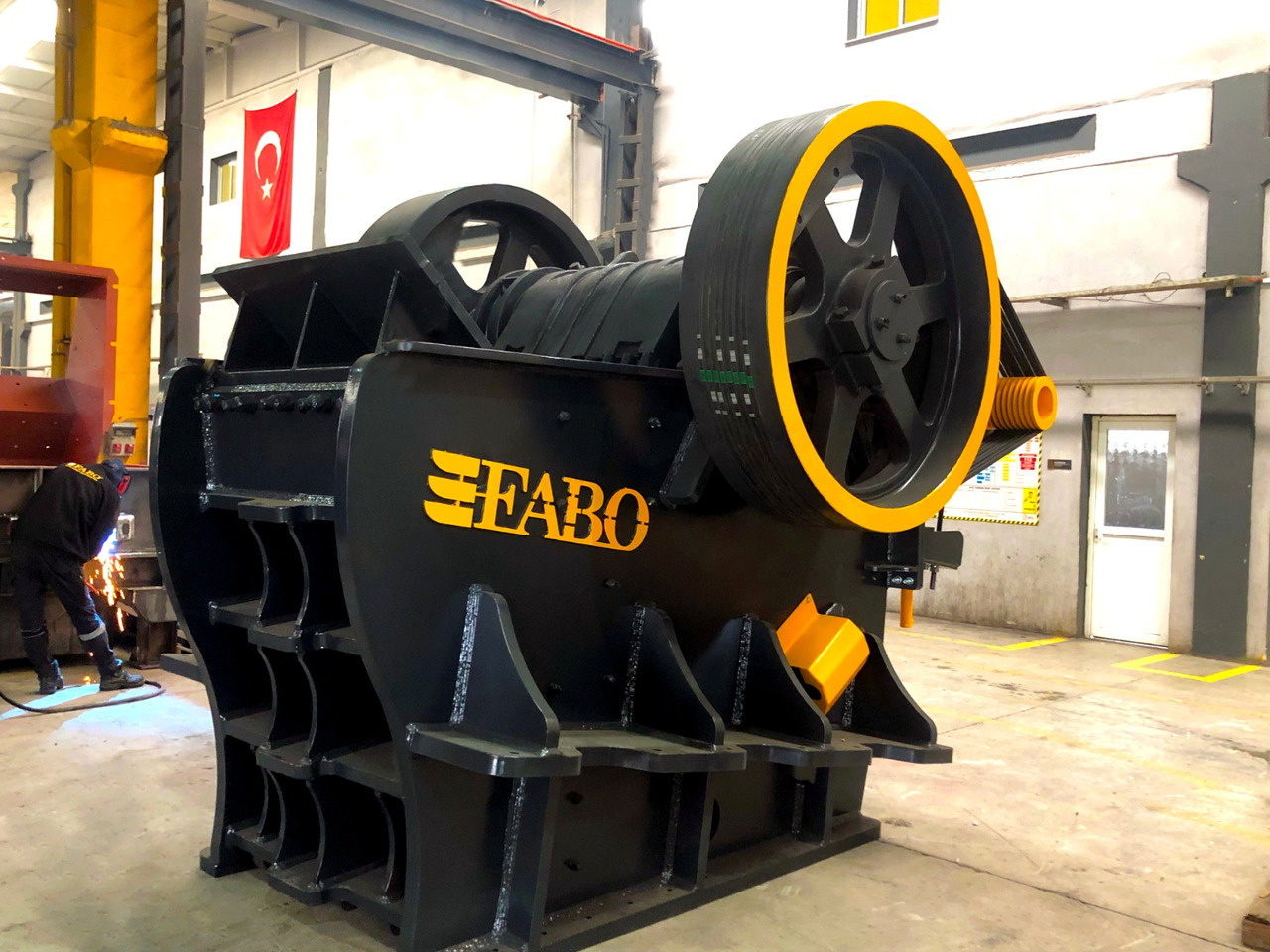

- 1st Crusher: Jaw Crusher – 1100x850 mm

- 2nd Crusher: Secondary Impact Crusher – 1120x1500 mm

- Maximum Feeding Size: 800 mm

- Vibrating Screen Size and Deck: 2200x5000mm 3-4 decks

- Total Motor Power: 500 Kw

- Generator (optional): 660 kvA

MCK-110 IS A COMBINATION OF:

• Bunker(Hopper)

• Vibrating Grizzly Feeder (bypass)

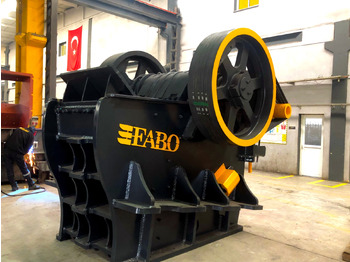

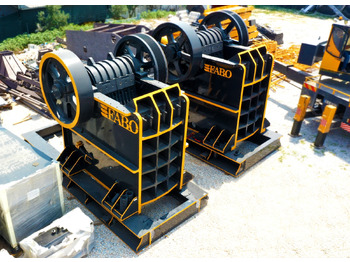

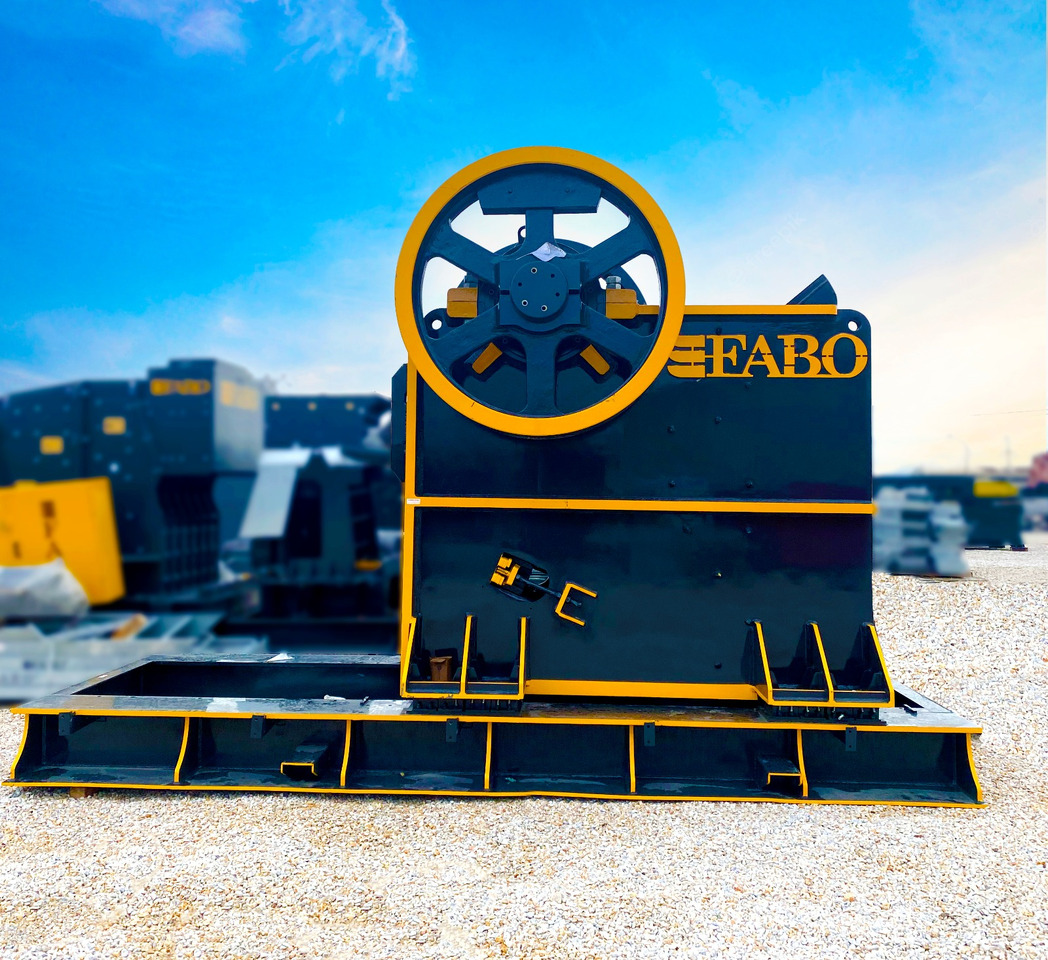

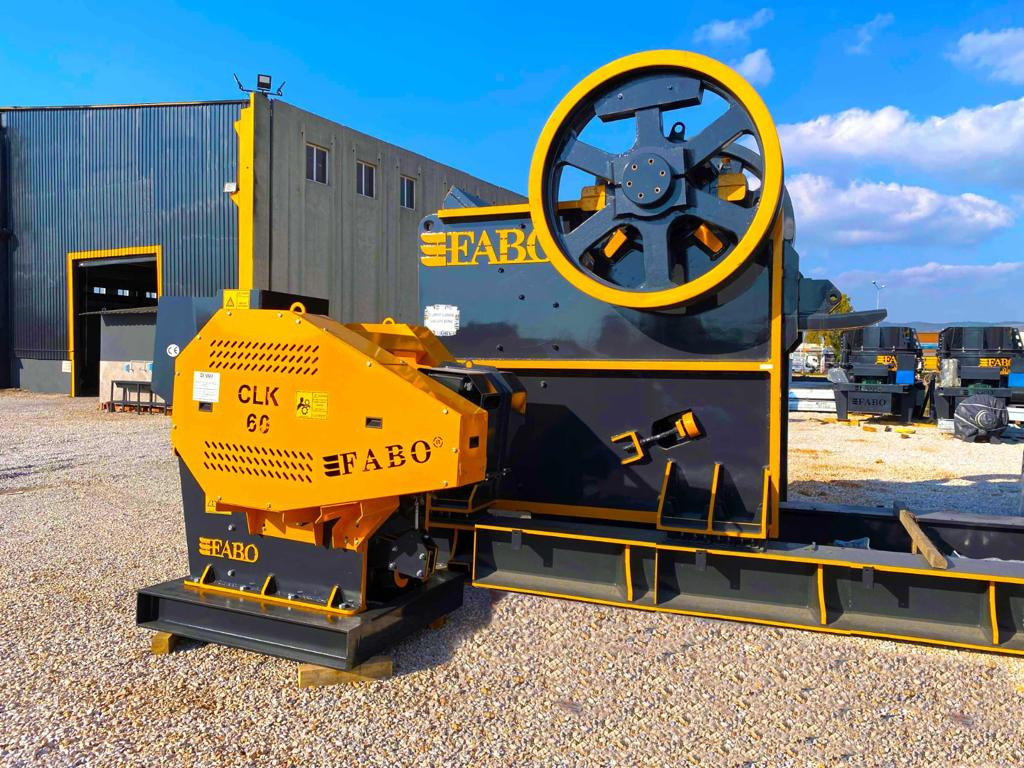

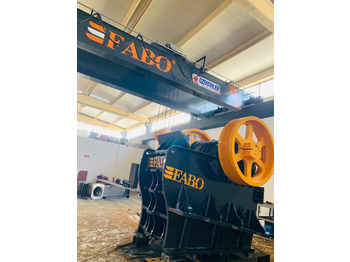

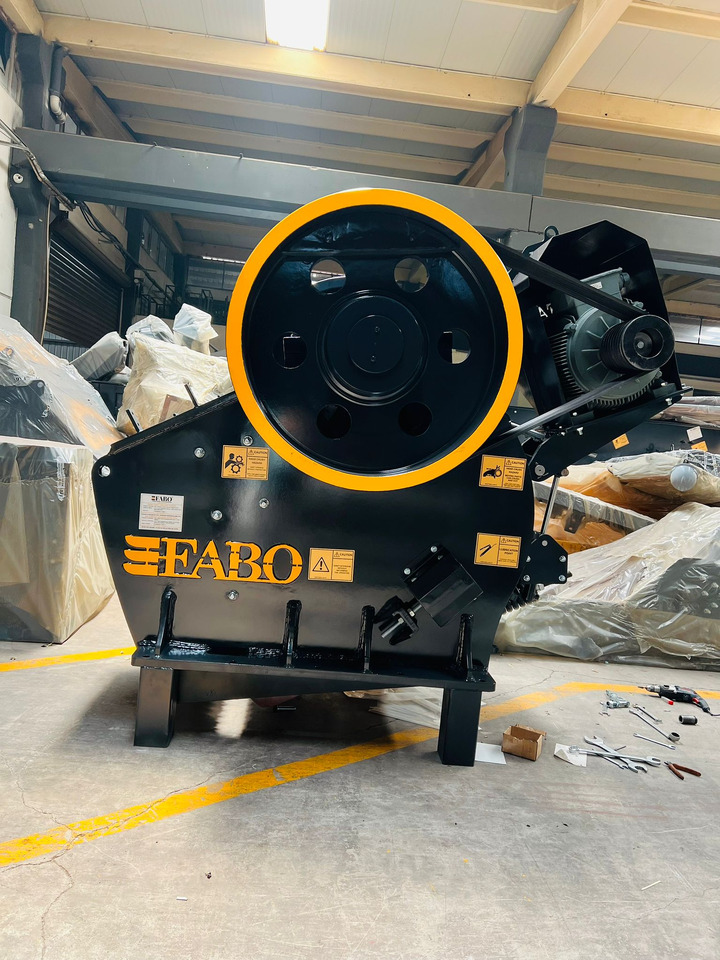

• Primary Jaw Crusher

• Secondary Impact Crusher

• High Stroke Type Vibrating Screen

• Folding type feeding, feedback, bypass and stock conveyor belts

• Hydraulic feet

• Mobile Chassis with axles and tires

• Fully Automation System

• Dust Suppression System

• Easy walking platforms for maintenance

• Diesel Generator (Optional)

FOR FURTHER INFORMATION PLEASE FEEL FREE TO CALL US!!!
