Jaunā Lauksaimniecības piekabe-pašizgāzējs Techmont Anhänger / Trailer / Remorque / Rimorchio / Прицеп / Przyczepa tridem PTW 21 t

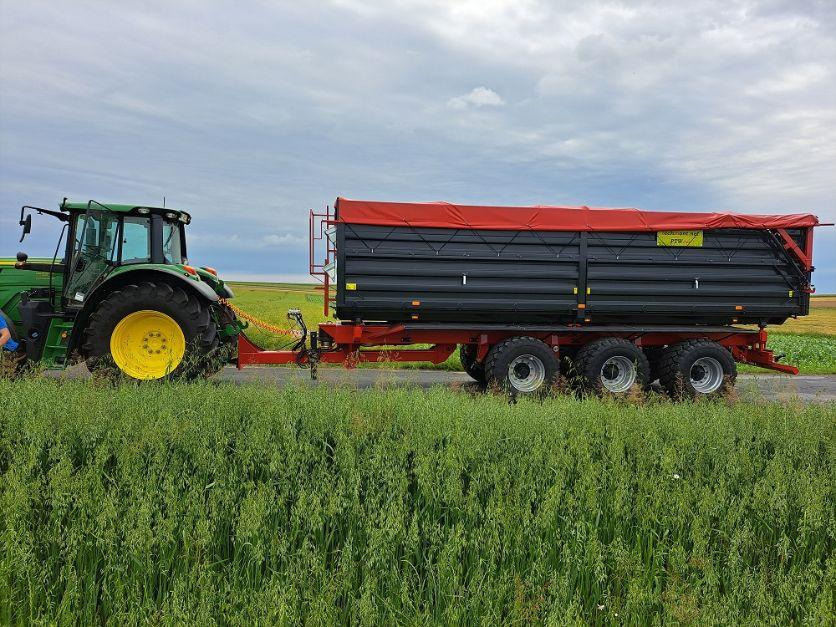

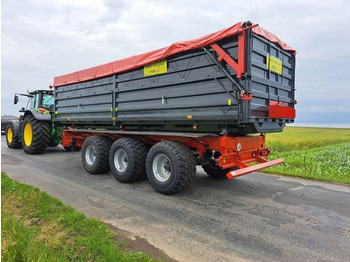

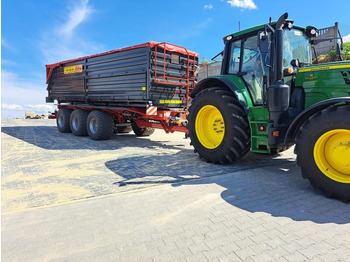

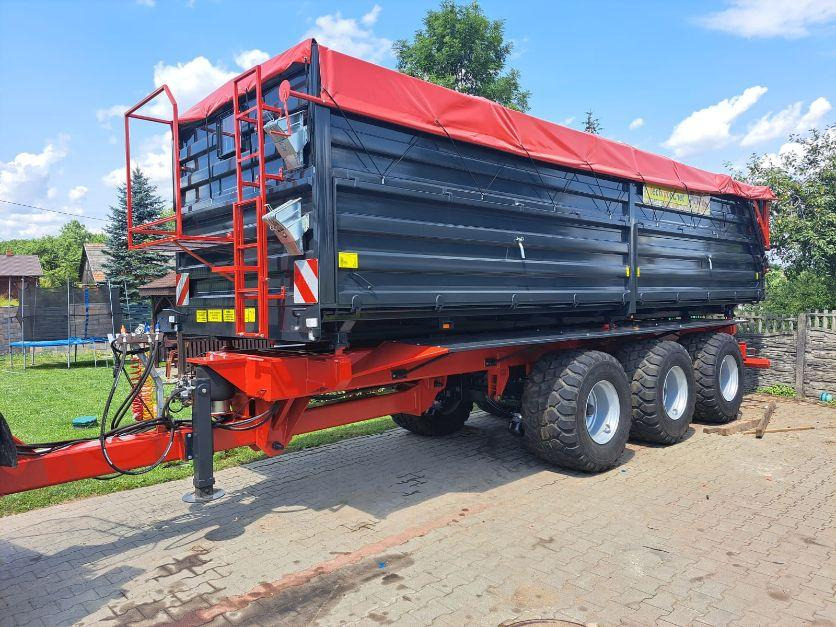

Techmont Trailer PTW 21T

Techmont's PTW 21T trailer has a wide range of equipment as standard. As one of the few trailers of this type, it has a three-way tipping of the cargo box, which significantly increases the functionality of the trailer. A ball-and-swivel, stable tipping system, proven, durable subframe profiles and high-quality, reliable and durable running axles distinguish our company's product from other products on the market. Profiled walls with industrial strength guarantee a long service life for the trailer. Standard equipment includes a window with a slider in the rear panel.

Technical data of the standard version:

Technically ( by design) permissible total weight: 34,000 kg

Permissible total weight: 33,000 kg

Weight: 21,000 kg

Unladen weight: 11,000 kg

Payload capacity of 160 mm box: 28 m3

Cargo area: 17.6 m2

Length of the cargo box inside: 8000 mm

Width of the cargo box inside: 2200 mm

Overall dimensions (length/width/height) 9900/2550/3330 mm

Height of body walls: 1600 mm

Floor/wall metal thickness: 5/3-4 mm

Platform height from the ground: 1495-1600 mm

Wheel base: 2100 mm

Suspension: parabolic springs

Drawbar eye load: 3000/4000 kg

Tire size: 600/50 R22,5

Design speed: 40 km/h

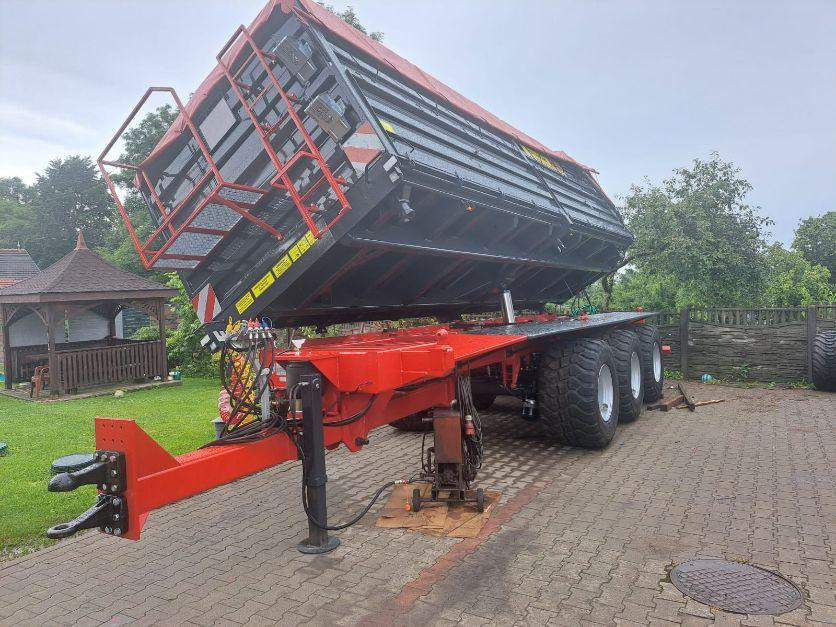

Tipping system: three-way

Hydraulic power supply from the tractor

Telescopic cylinder (stroke/pressure) 2990 mm/72 L/200 bar

Minimum tractor power requirement: 182/133.8 hp/kW

Tipping angle of the cargo box (rearward/side): 50/40 ˚

Standard equipment:

- Cargo box with inserted reinforcing profiles on the walls

- Hydraulically lifted rear wall

- Chassis frame welded from rectangular closed profiles of high-strength structural steel

- Universal rigid drawbar pneumatically cushioned with clamping force adjustment, for connection to the lower or upper hitch of the tractor

- Type of drawbar hitch: K80 and universal with eye fi 50mm

- Drawbar support: hydraulic

- Tridem suspension on 6 parabolic springs, compensating wishbones, with a wheelbase of 1525mm, with a center rigid axle and two passively steered axles, with hydraulic steering lock installation

- Axles with drum brakes with dimensions Ø406x140mm

- Two-line pneumatic brake system (brake cylinders on the two front axles pneumatic-spring, on the third pneumatic)

- Parking pneumatic brake automatic

- Rear protection: homologated

- Mudguards steel guards, to protect the backfill of the goods between the wheels in case of side tipping

- Two wheel chocks housed in galvanized pockets

- Electrical system with side marker lights and rear exit

- Automatic shut-off valve to limit tipping, with safety cables

- Service support for the cargo box

- Folding ladder and side steps for easy access to the cargo box

- Windows on the front wall of the cargo box

- Hydraulically raised tailgate controlled from the cab

- Grain discharge window, with locking mechanism, in the rear wall

- Two-component chemical-hardening epoxy primer

- Chassis and wall painting colors any from the RAL palette
