Qingdao Promising Compact CE Wheel Loader ZL18F līzingu

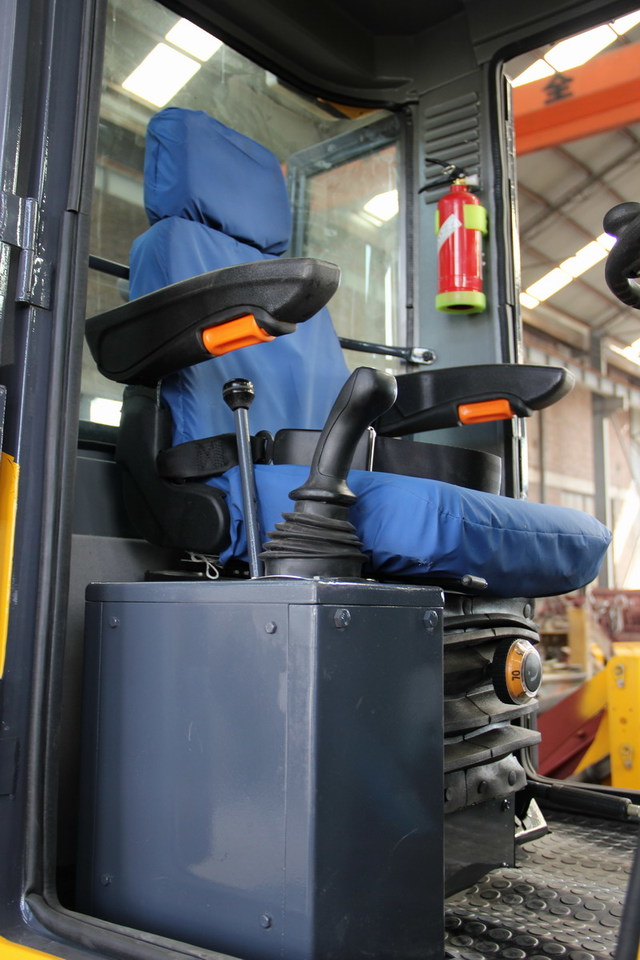

1.8 ton capacity small front loader with enclosed tilt cabin, adjustable suspension seat, digital radio & MP3 player, reversing camera and top beacon; optional hydraulic joystick control, hydraulic quick hitch, and air conditioner

Hydraulic Wheel Loader ZL18F

Technical Specifications

1. Rated Load: 1800kg

2. Operating Weight: 5650kg

3. Rated Bucket Capacity: 0.85CBM

4. Bucket Width: 1900mm

5. Max. Breakout Force: 45KN

6. Max. Tilt Angle of Cabin: 30deg.

7. Max. Dumping Height: 2800mm

8. Max. Dumping Reach: 1050mm

9. Raising Time: < 5.0s

10. Min. Ground Clearance: 350mm

11. Overall Dimensions (L x W x H): 5600x1950x2750mm

12. Min. Turning Radius: 4600mm

13. Engine Model: WEICHAIHUAFENG ZHBG41

14. Engine Type: Four-cylinder, Inline, Water-cooled Evaporative, Four-stroke Diesel Engine

15. Rated Engine Power: 47kW

16. Rated Engine Speed: 2400rpm

17. Min. Fuel Consumption Rate: 258.4g/kW.h

18. Transmission Mode: ZL280 Integrated/Split Hydraulic Torque Converter

19. Gear Shift: 1 Forward, 1 Reverse, 1 High Speed, 1 Low Speed

20. Max. Speed: 25km/h

21. Mode of Axle: ZL16 Hub Reduction Drive Axle

22. Wheel Tread: 1500mm

23. Wheel Base: 2150mm

24. Drive Mode: 4-wheel Drive

25. Hydraulic System Working Pressure: 20Mpa

26. Hydraulic System Working Pump Type: Gear Pump

27. Service Brake: Foot Pedal Vacuum Booster, Air over Hydraulic Caliper Disc Brake on 4 Wheels

28. Parking Brake: Hand Lever Flexible Shaft Controlled Disc Brake

29. Tyre Type Specification: 16/70-20-16PR

30. Front Tyre Pressure: 0.40Mpa

31. Rear Tyre Pressure: 0.35Mpa

Note:

1. All photos are for reference only.

2. Machines shown may include optional parts.

3. All specifications and design characteristics are subject to change without prior notice.
