Palamides Gamma 502ho | 2023 līzingu

Condition: Very Good

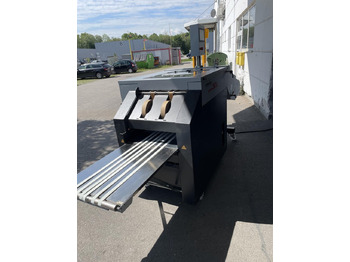

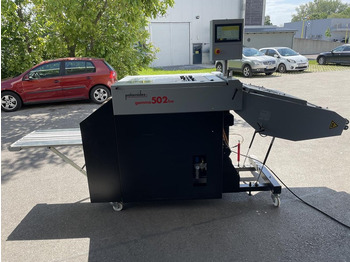

Used Palamides gamma 502ho delivery machine

The Palamides gamma 502ho is an automatic delivery and banding machine, specifically designed for the efficient post-processing of print products such as brochures, flyers, greeting cards, and mailings. It is ideal for connection to folding machines, saddle stitchers, collators, or mailing lines and stands out due to its compact design, high flexibility, and ease of use. The gamma 502ho increases productivity, reduces operating costs, and enables efficient handling of large production volumes even with minimal staff.

Key Features

- Compact, Requires only a small footprint and can be quickly connected to various production machines.

- Automatic banding: Optional, robust impulse sealing system for secure and clean banding of stacks.

- Intuitive operation: Clear touch display and user-friendly interface for quick setup and operation by a single person.

- Flexible delivery: Stacks can be banded or delivered loose; the desired quantity is freely selectable.

- Efficient waste control: Automatic ejection of defective products, production stop if too many defective copies occur in succession.

- Large buffer table: Gives the operator sufficient time for quality control and packaging of stacks.

- Seamless integration: Especially suitable for connection to the Horizon iCE StitchLiner Mark IV, but also universally usable for other machines—no additional interface required.

- Industry 4.0-capable: Operational data acquisition and dynamic separation of book blocks of different sizes possible (DSP platform).

Technical Specifications

- Infeed format: 4-page sheets, variable from 650 to 1,000 mm

- Product thickness (max.): 100 mm (optional 120 mm)

- Format (max.): 510 x 235 mm

- Format (min.): 140 x 95 mm (optional 95 x 75 mm)

- Performance: up to 600 packs/cycles per hour

- Main connection: 3ph+N+GND 400V AC, 50/60 Hz

- Control voltage: 24V DC

- Power: 4 kW

- Fuse: 16A

- Year of manufacture: 2023

- Weight: approx. 500 kg
