Jaunā Šķirošanas kauss - Celtniecības tehnika SID Siebschaufel / Screening bucket / cuillère de criblage 0,65 M, 0,05 M3

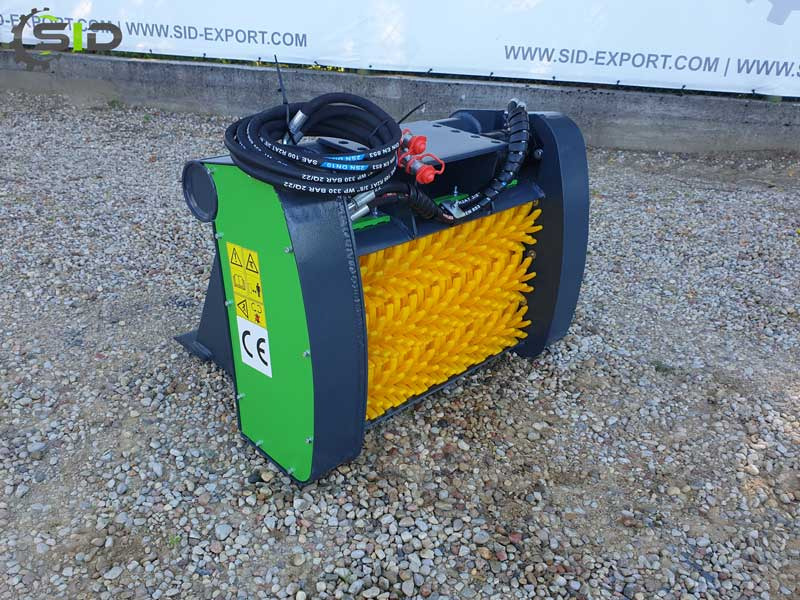

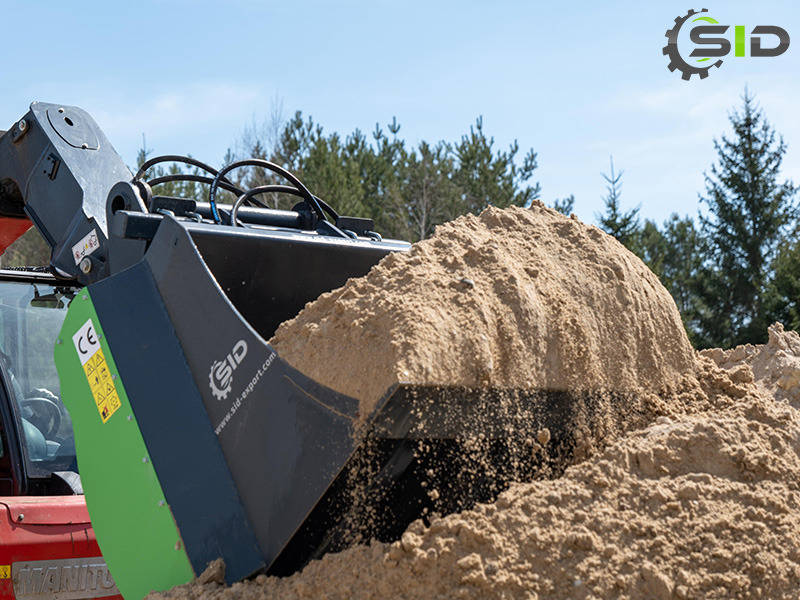

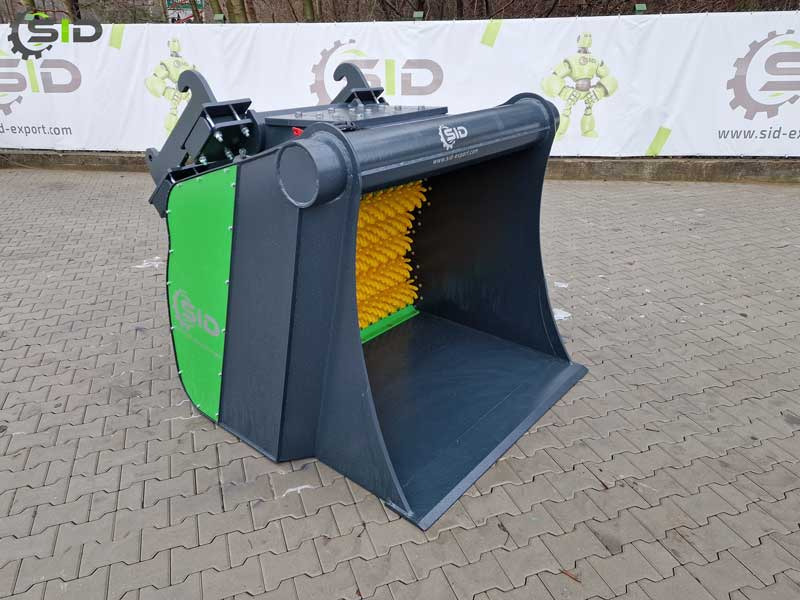

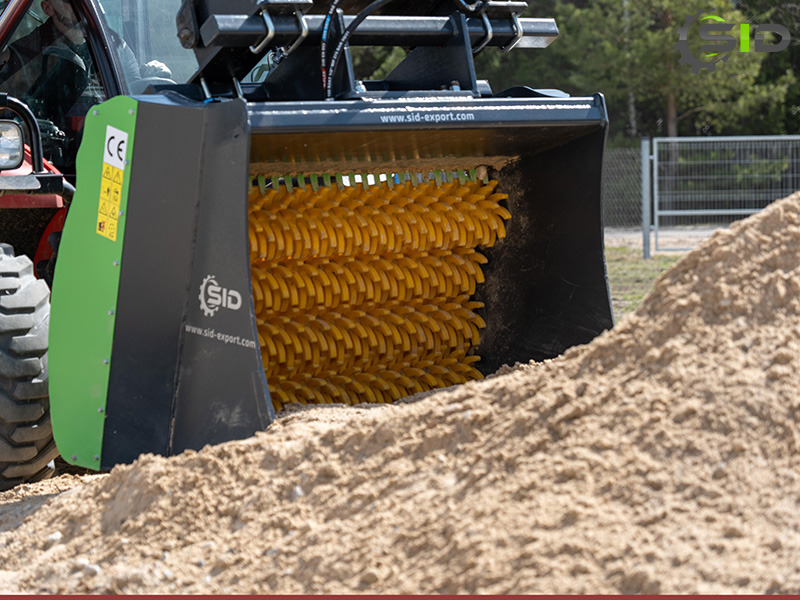

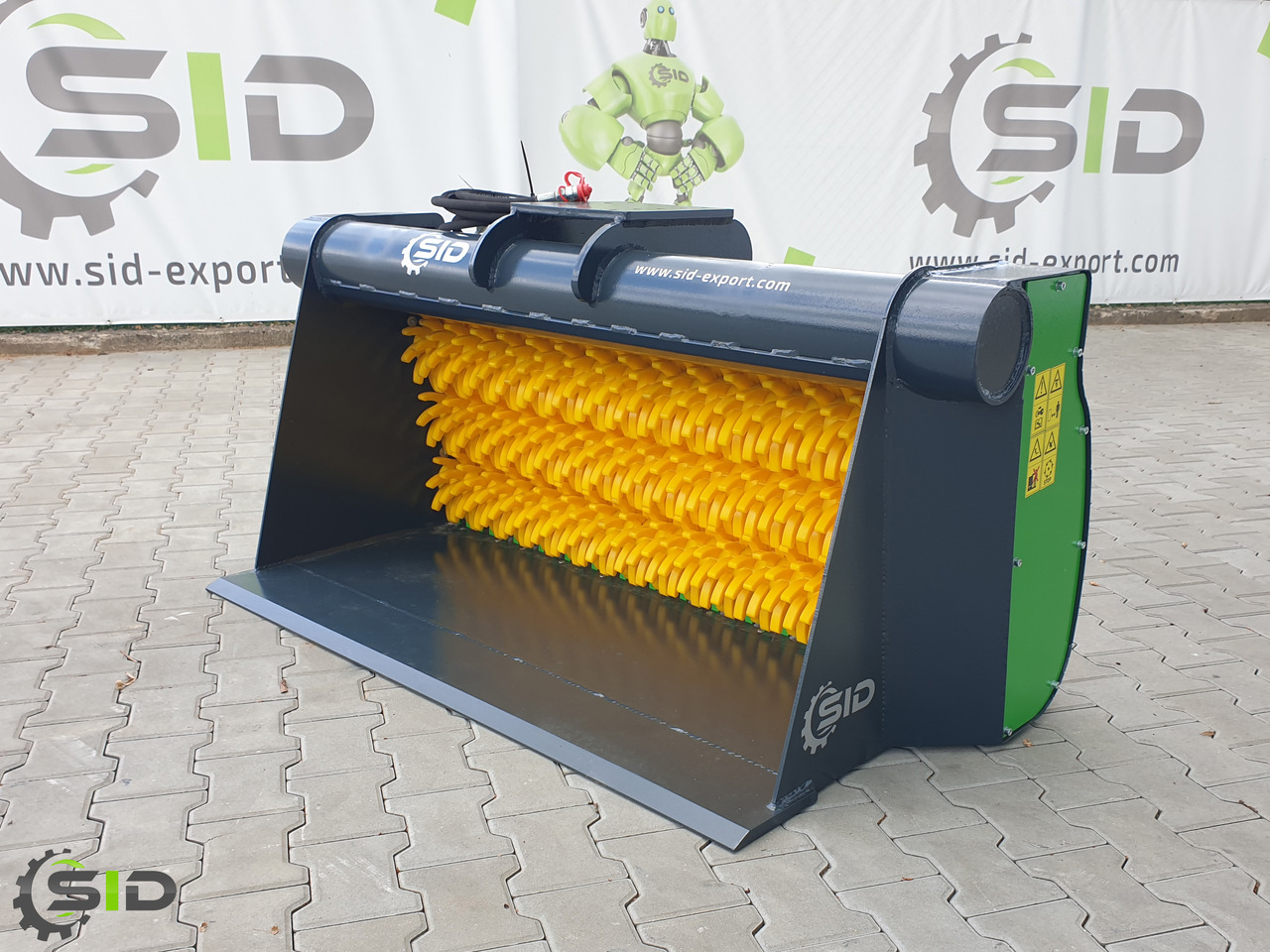

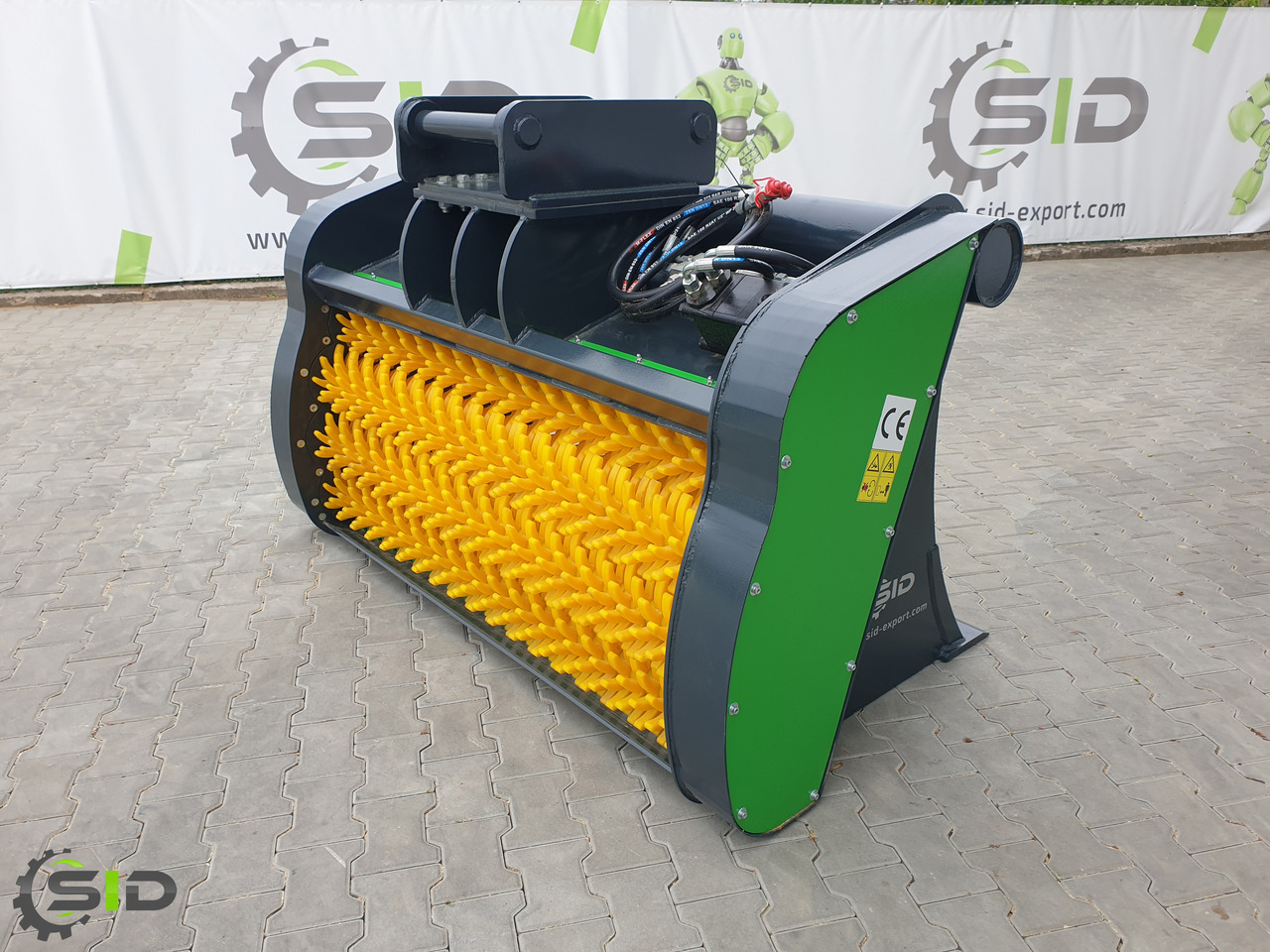

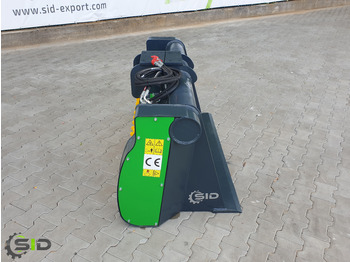

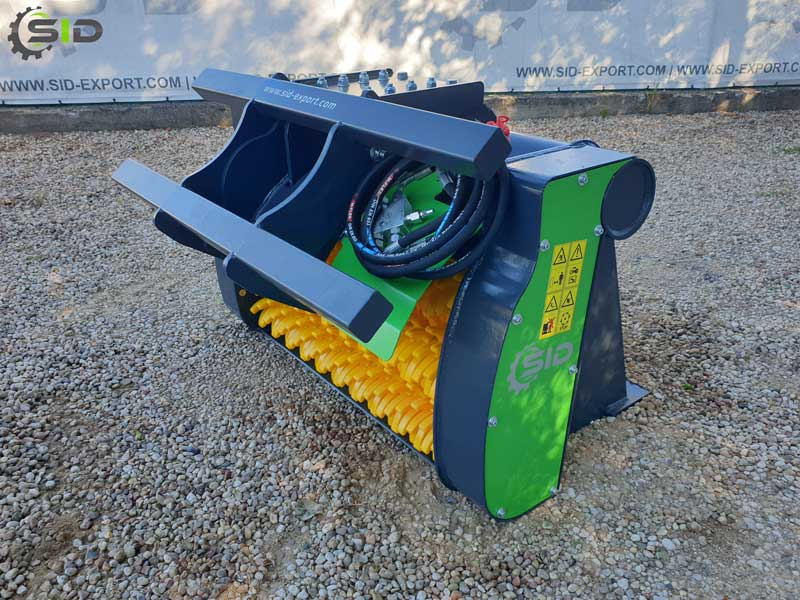

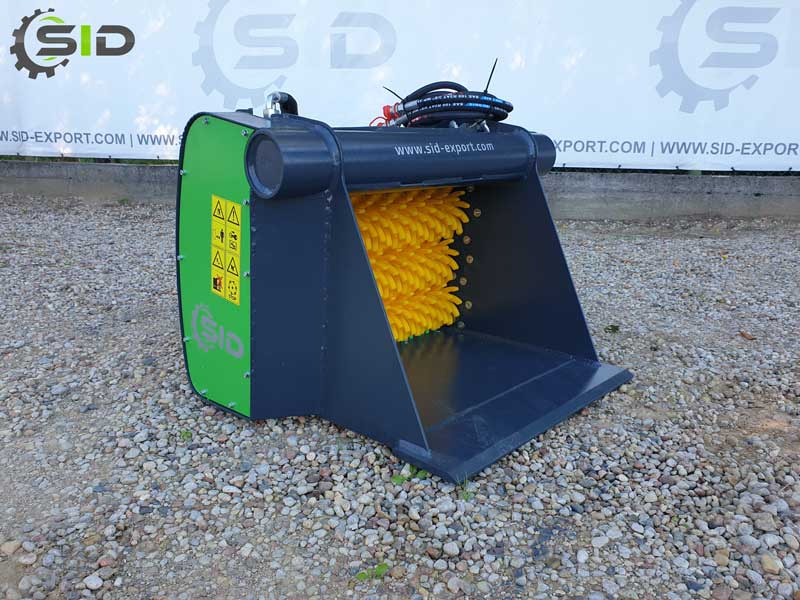

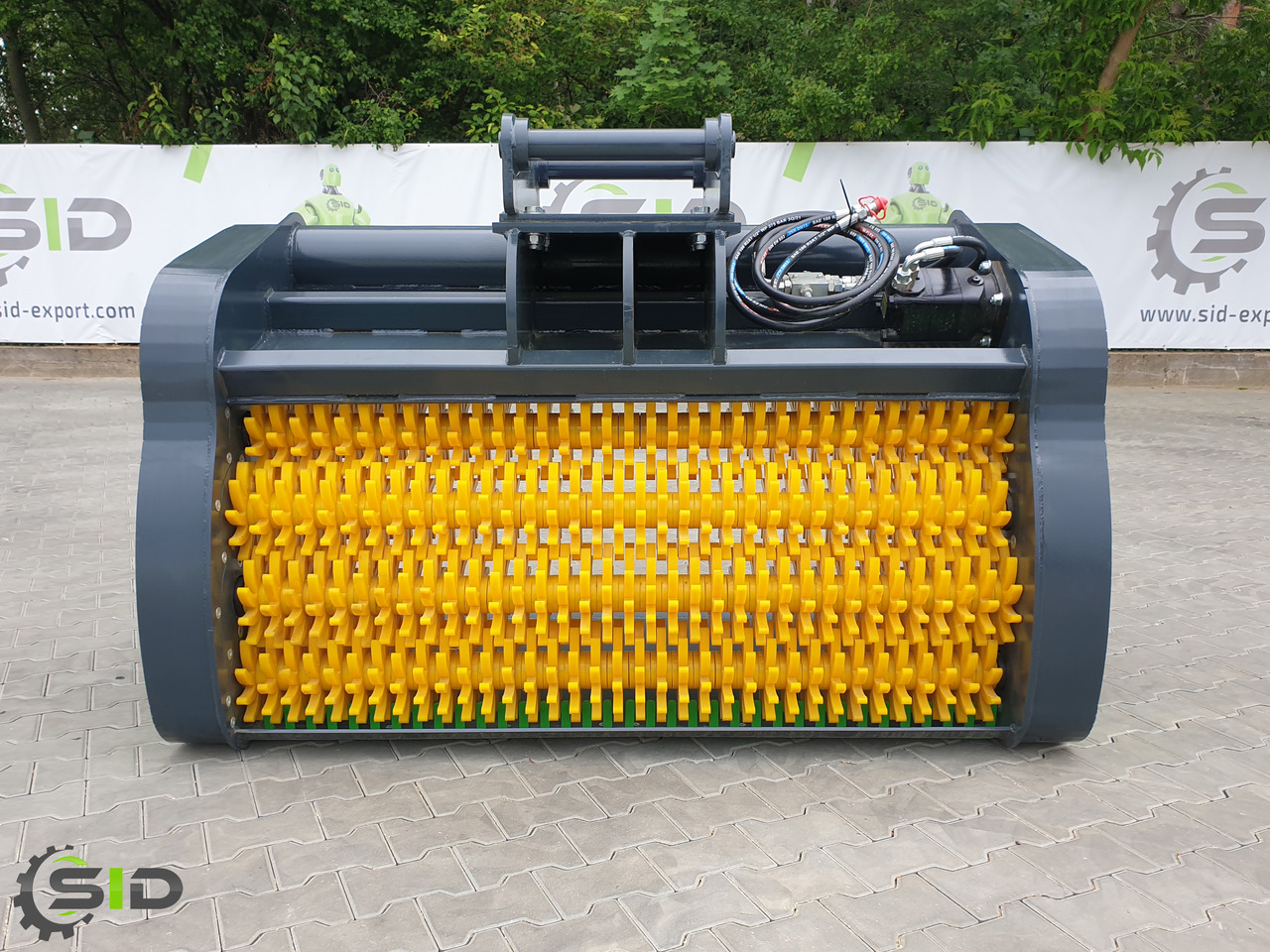

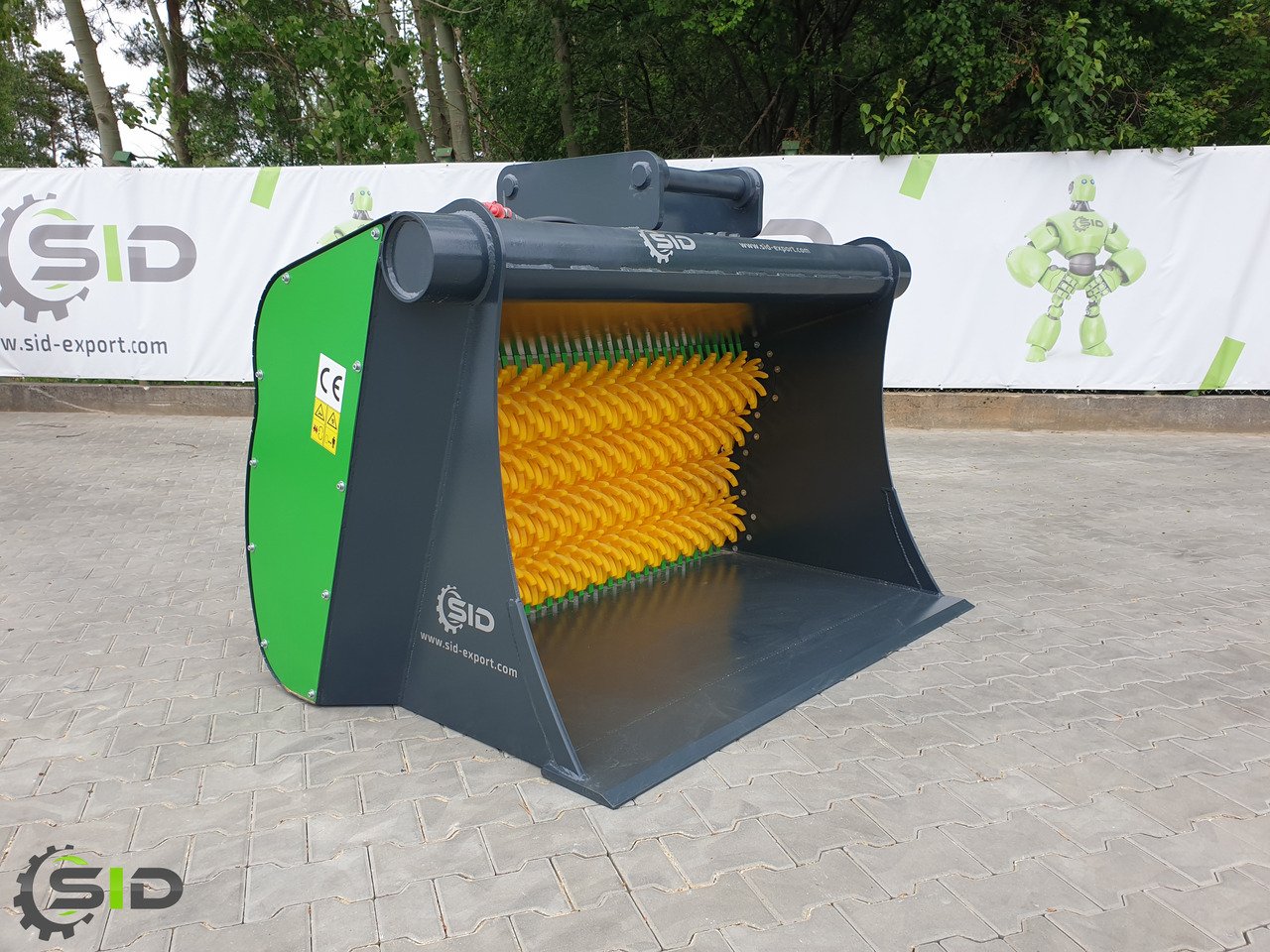

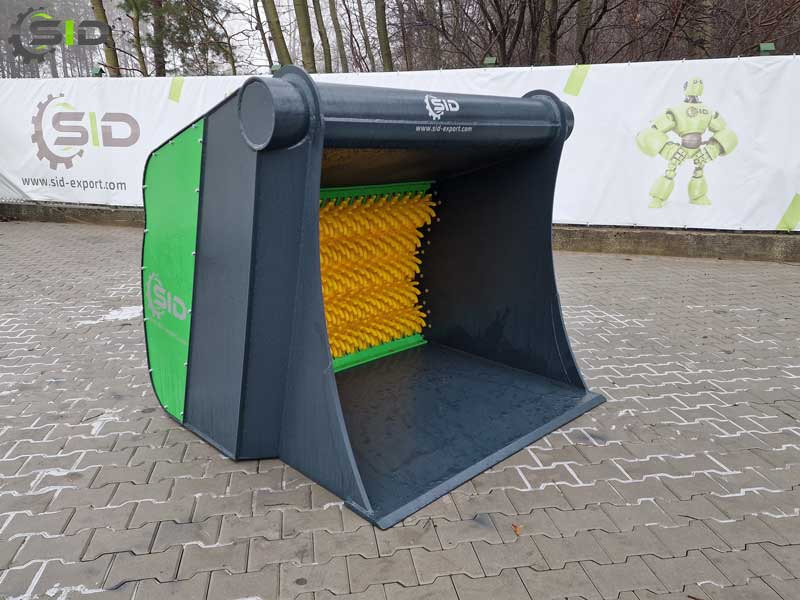

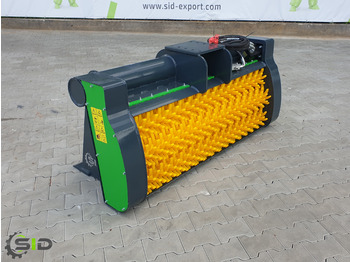

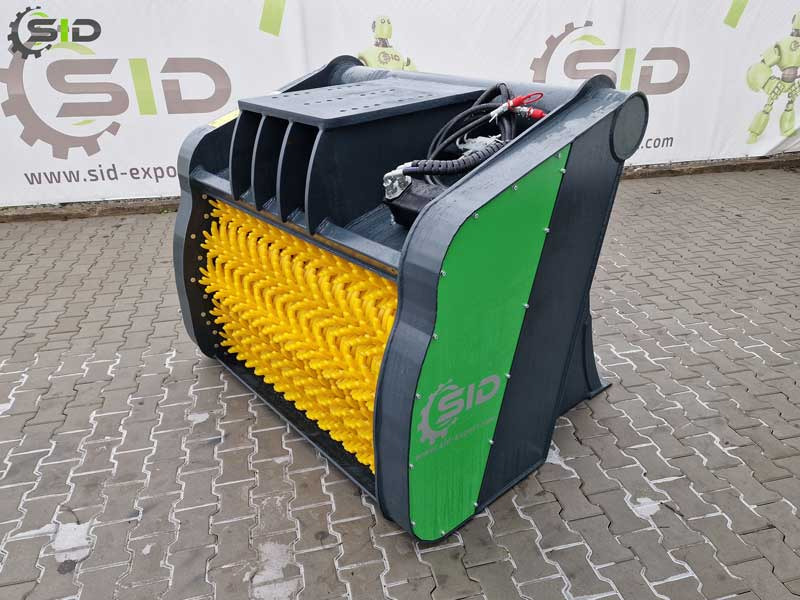

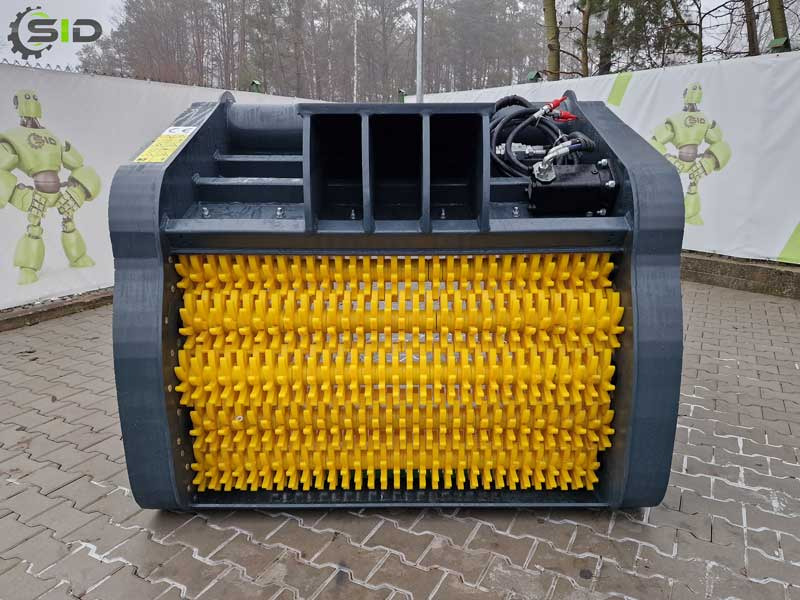

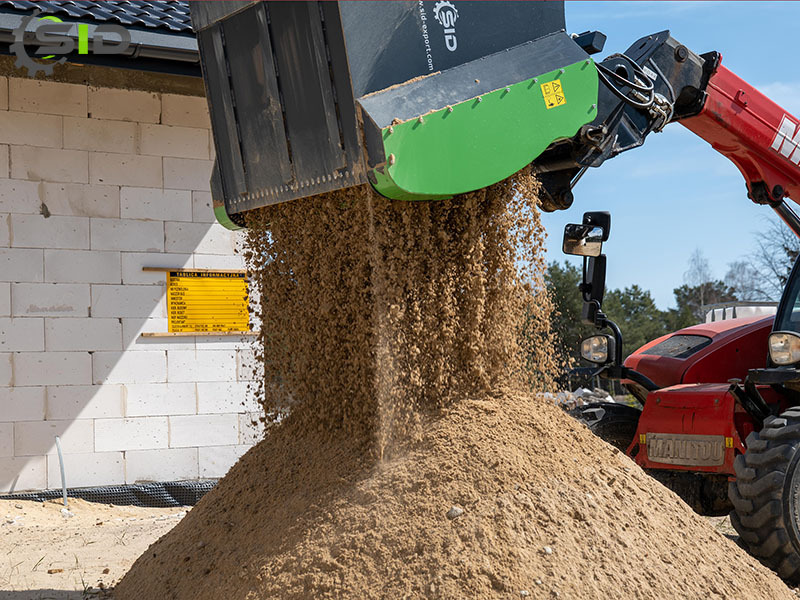

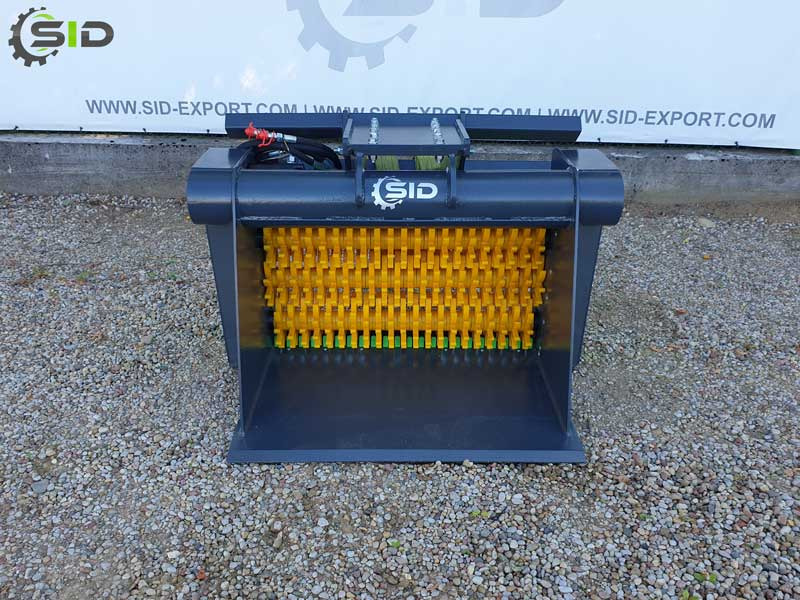

The screening bucket is used to screen bulk materials such as soil, aggregate, sand and compost without the need for shredding or crushing. The polyurethane stars mounted in the bucket rotate in the same direction, allowing the raw material to be separated. One direction of rotation of the rollers means that a unidirectional hydraulic line is required to drive the screening unit.

Thanks to the soft material of the discs and their smooth movement, the spoon is gentle on materials such as peat or roots. The unit accurately separates the mixed material and does not get blocked by overflowing raw material that remains in the bucket.

Today, everyone appreciates a fast and efficient product . Our machine was built with the time-sensitive user in mind. It sifts material from the bucket in seconds and access to the drive and rollers is very quick and easy. If necessary, it does not take long to replace the stars. The attachment is very quiet during operation. The bucket has a robust and well thought-out design that will ensure comfortable, long-lasting and safe handling.

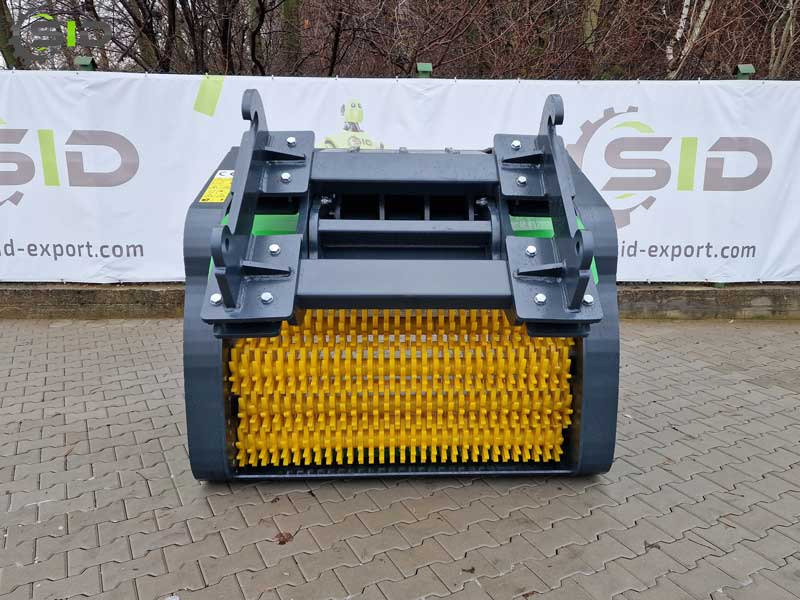

Match the bucket to your equipment! The screening bucket can be fitted to excavators, tractors, telehandlers, skid steer loaders, wheel or track loaders and mini-loaders, replacing the standard digging bucket.

The spoon is used for sifting materials such as:

stone, ground, gypsum, sand, fertiliser, separation of mixed waste, stone waste fine screening, screening of green waste, sifting of rubbish

Main product features:

- A solid and durable structure made of high-strength steel S355.

- Geretor engine.

- Solid c45 shafts.

- Blade Hardox.

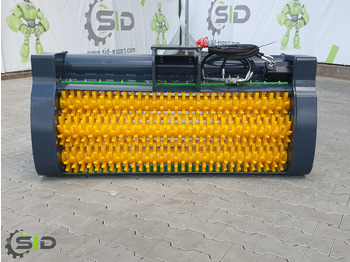

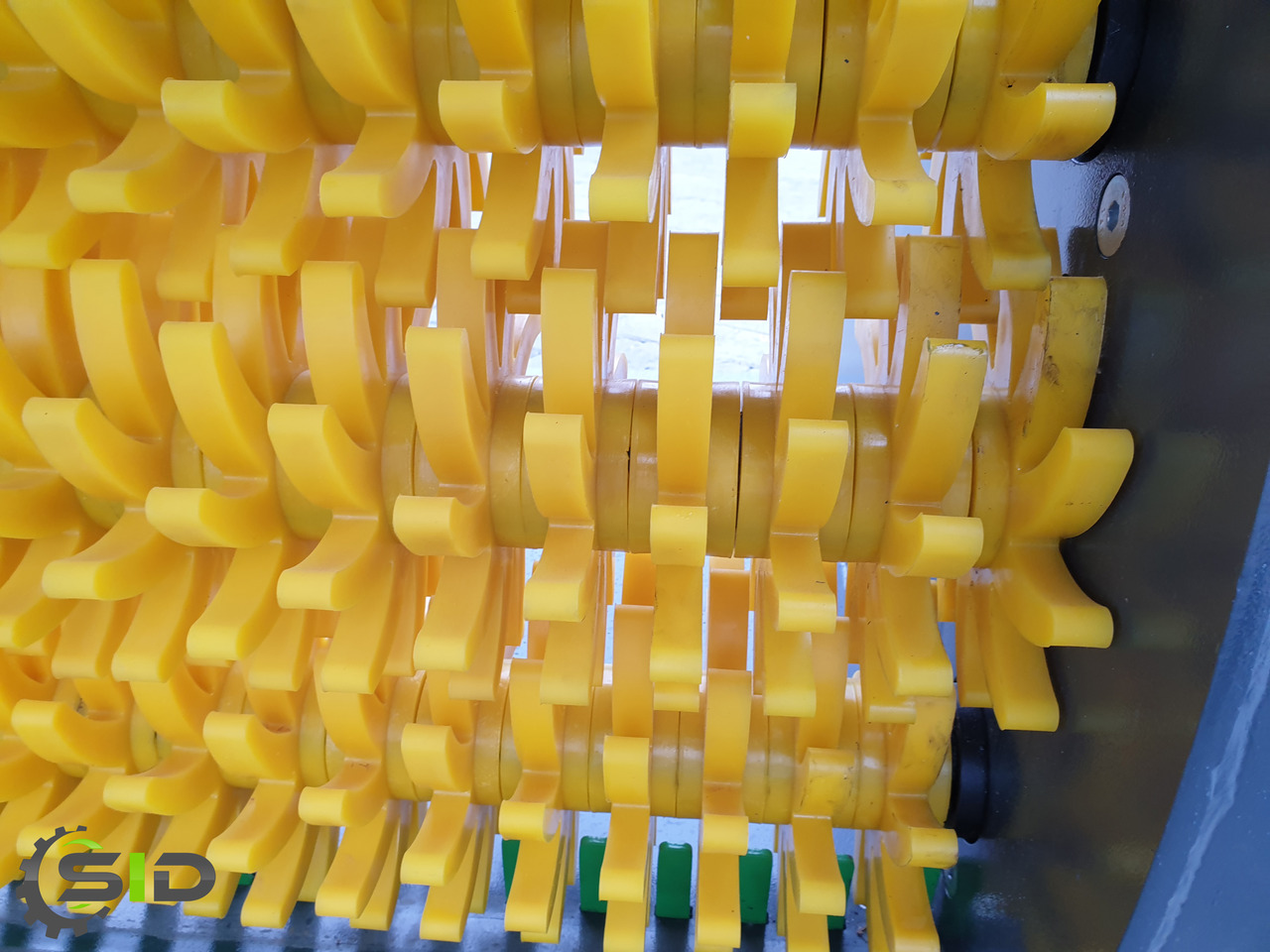

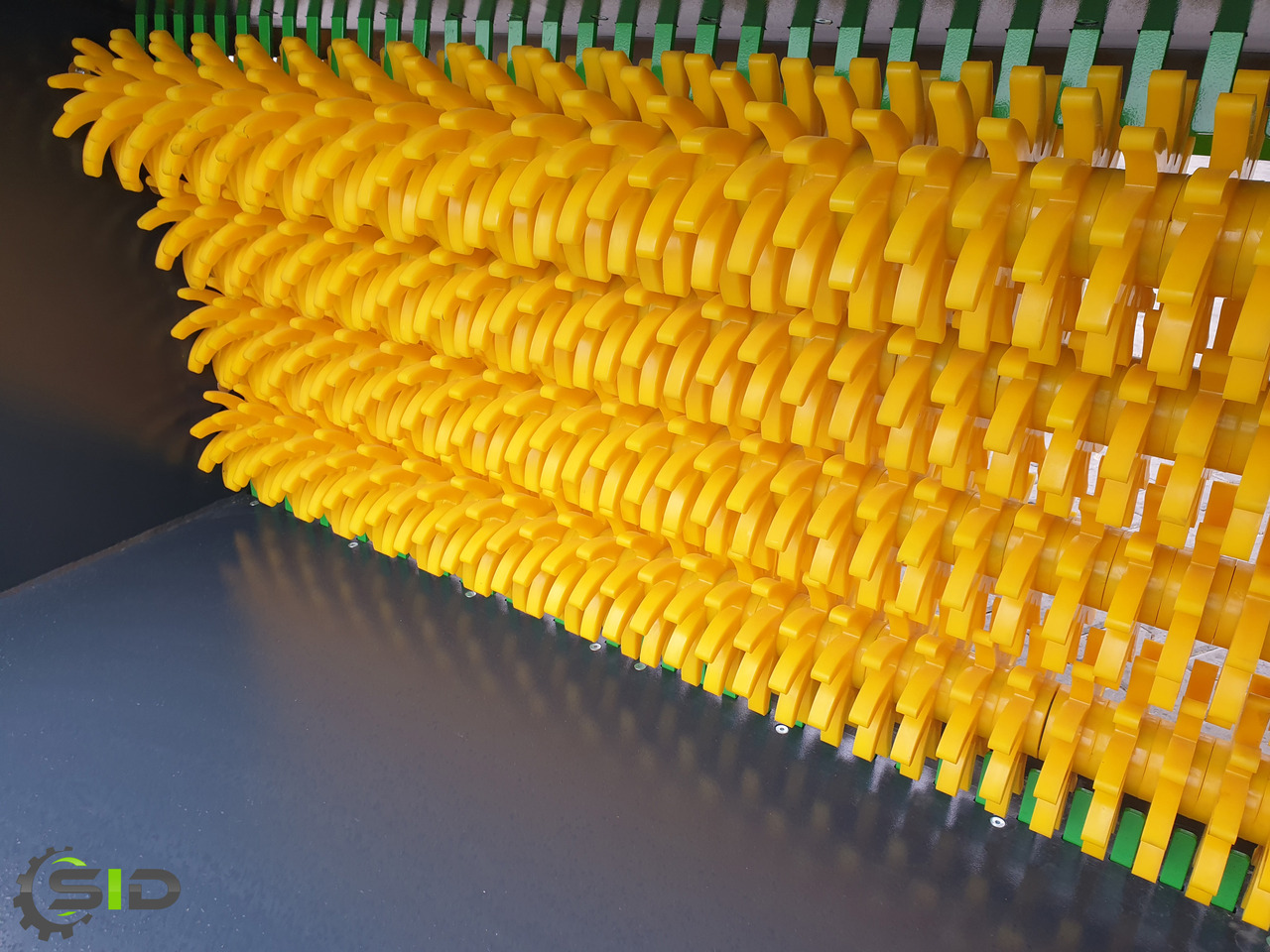

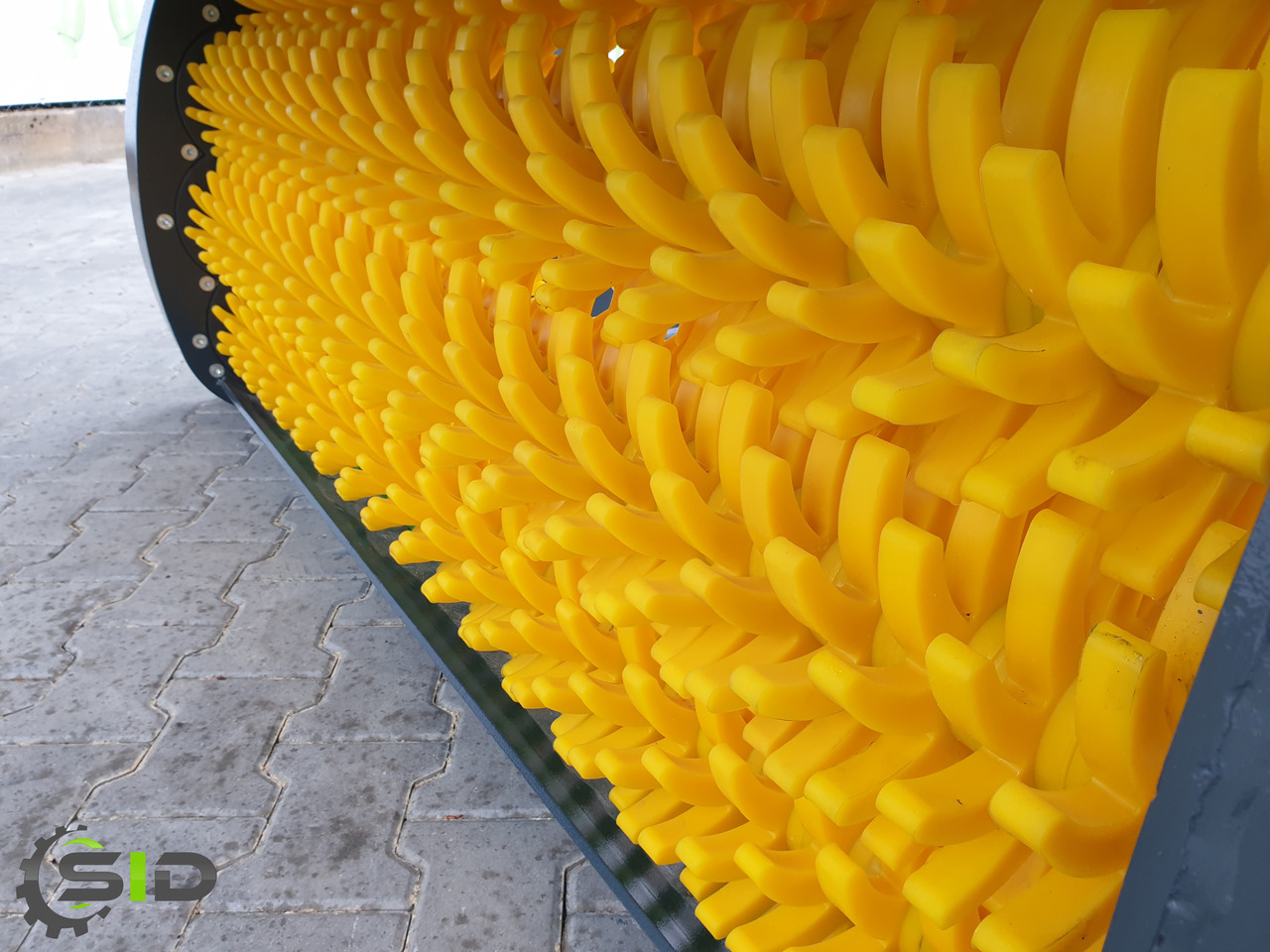

- A system of specially designed polyurethane stars ensures excellent service life and maximum performance of the screening bucket.

- Protective covers for the drives.

- Built-in motor protected from damage.

- Hardened rim gears - Reinforced chain.

MODEL S / M

Width | Volume | Type & Nr. of Stars | Shafts | Weight | Weight of excavator | Price*

650 mm | 0,05 m3 | 160 mm -35 pcs. | 2 pcs. | 110 kg | 1-2 T | 2 575 €

650 mm | 0,10 m3 | 160 mm -53 pcs. | 3 pcs. | 164 kg | 2-4 T | 3 675 €

850 mm | 0,13 m3 | 160 mm -71 pcs. | 3 pcs. | 190 kg | 3-5 T | 4 775 €

1050 mm | 0,16 m3 | 160 mm -89 pcs. | 3 pcs. | 220 kg | 4-6 T | 5 875 €

Loader frame : 550 €

• Price without screwed on fixing - TYPE WD

- Fi 160 stars - 8 €

- 20 mm sleeve - 5 €

MODEL L

Width | Volume | Type & Nr. of Stars | Shafts | Weight | Weight of excavator | Price*

1000 mm | 0,20 m3 | 220 mm - 64 pcs. | 3 pcs. | 462 kg | 5-7 T | 6 985 €

1450 mm | 0,30 m3 | 220 mm - 94 pcs. | 3 pcs. | 565 kg | 6-9 T | 8 085 €

Loader frame : 630 €

• Price without screwed on fixing - TYPE WD

- Fi 200 stars - 20 €

- 10 mm sleeve - 3 €

- 20 mm sleeve - 5 €

MODEL XL

Width | Volume | Type & Nr. of Stars | Shafts | Weight | Weight of excavator | Price*

1000 mm | 0,40 m3 | 220 mm - 84 pcs. | 4 pcs. | 800 kg | 10-12 T | 8 820 €

1250 mm | 0,60 m3 | 220 mm - 108 pcs. | 4 pcs. | 875 kg | 12-14 T | 10 100 €

1450 mm | 0,80 m3 | 220 mm - 132 pcs. | 4 pcs. | 950 kg | 13-18 T | 11 395 €

1650 mm | 1,00 m3 | 220 mm - 156 pcs. | 4 pcs. | 1025 kg | 15-20 T | 12 675 €

Loader frame : 810 €

• Price without screwed on fixing - TYPE WD

- Fi 200 stars - 20 €

- 10 mm sleeve - 3 €

- 20 mm sleeve - 5 €

MODEL XXL

Width | Volume | Type & Nr. of Stars | Shafts | Weight | Weight of excavator | Price*

1450 mm | 1,20 m3 | 220 mm - 155 pcs. | 5 pcs. | 1200 kg | 18-24 T | 15 435 €

1450 mm | 1,60 m3 | 220 mm - 155 pcs. | 5 pcs. | 1300 kg | 20-30 T | 16 905 €

1450 mm | 1,60 m3 | 220 mm - 186 pcs. | 6 pcs. | 1450 kg | 20-30 T | 19 110 €

1450 mm | 2,00 m3 | 220 mm - 186 pcs. | 6 pcs. | 1550 kg | 24-34 T | 21 315 €

Loader frame : 1115 €

• Price without screwed on fixing - TYPE WD

- Fi 200 stars - 20 €

- 10 mm sleeve - 3 €

- 20 mm sleeve - 5 €
