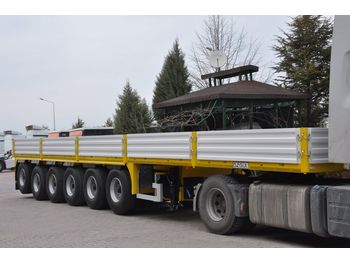

Bortu puspiekabe/ Platforma OZGUL
Publicēts: 5g. 9mēn.
Publicēts: 5g. 9mēn.
Main undercarriage: Box section made of S355 mate¬rial
Side skirts (undercarriage): 160 NPU material
Welding: It is welded with shielded metal arc electrode welding
Extension type: It can be extended by tow truck from central part of platform
Extension locking: There is pneumatic locking system
Upper platform: Platform is over with complete 3/4mm patterned steel sheet
Puller conformity: It has suitable structure with 4x2 or 6x4 tow truck
Axles: Axles with drum with 4 X 12 Ton capacity are used
Axle structure: It is made of hydraulic or idler steering structure
Axles: Axles with drum with 4 X 12 Ton capacity are used
Properties of Hydraulic Steering/Suspension
Remote controlled hydraulic steering system
Remote controlled system
Ability to rotate towards left and right
Ability to adjust platform height
2s/2m-4s/3m EBS+RSS brake system accordingly with EU standards
2x7 Pin
SAE Standard
Complete Lighting set is used
385/65 R 22,5-445/65 R 22,5 single tyre 245/70 R 17,5 double tyre
It is painted in special paint oven by 2+1 Epoxy Lining and Acrylic Paint after sand blasting operati¬on
Locker
Strip reflectors surrounding vehicle
Plastic water tank
Plastic wheel stop wedge block
Spare part carrier with pulley
Aluminum side guard panels
2 X10 Nos side connection rings
